PRODUCT
材料:玻璃纖維增強塑科；框葉PBT UL94V-0等級

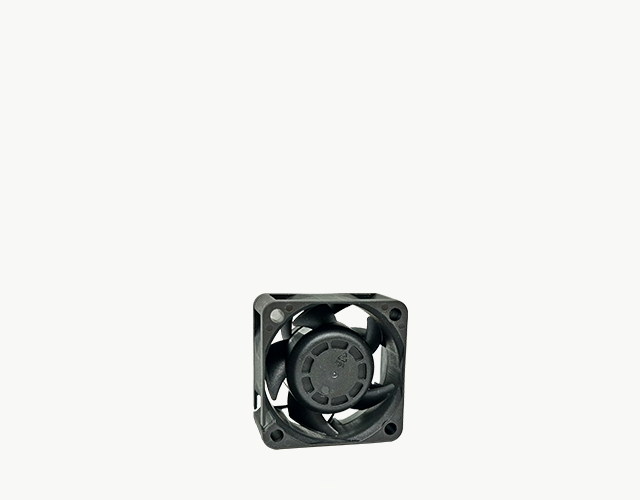

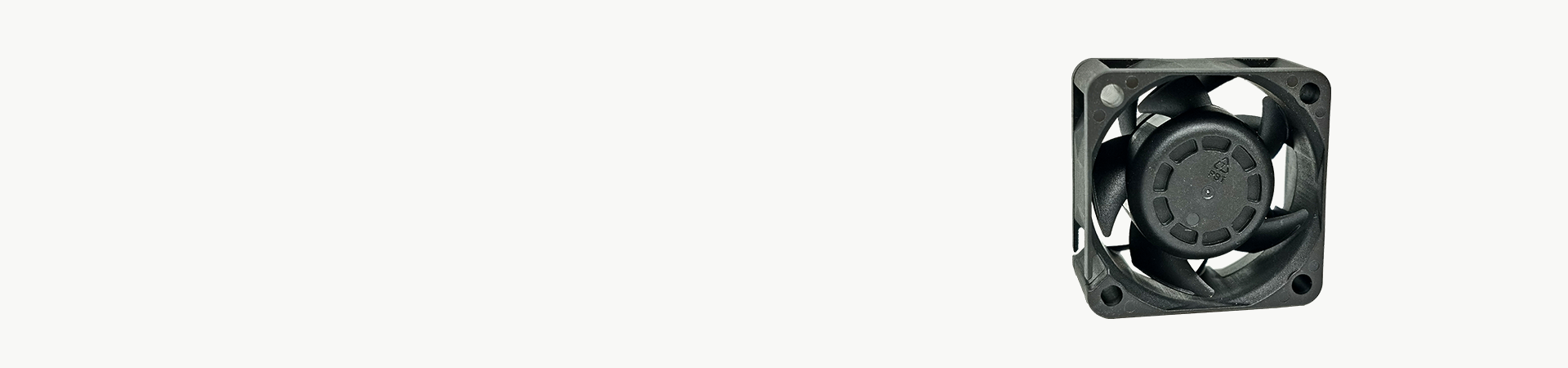

散熱風扇
產品描述
Product Description

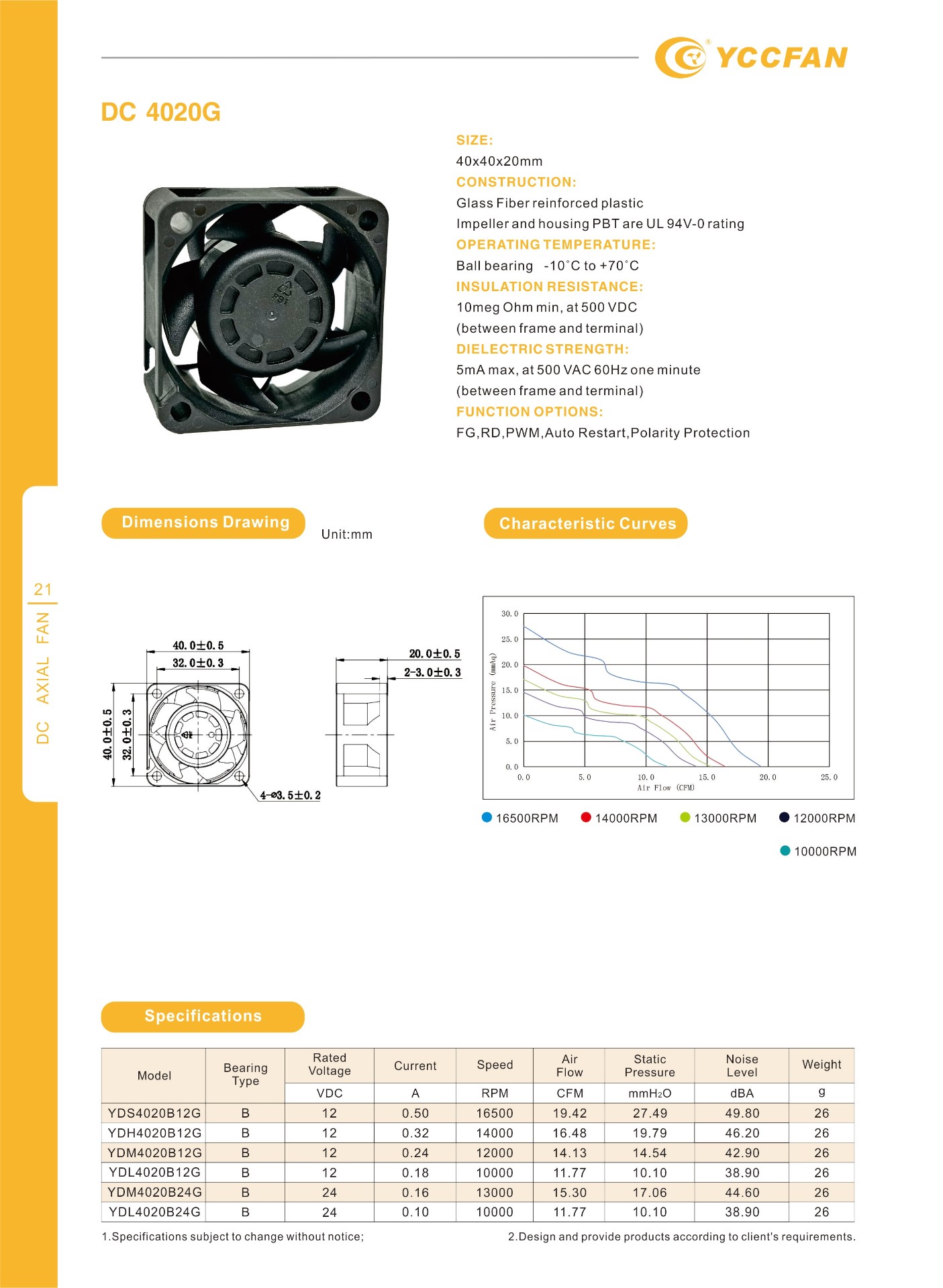

SIZE:40x40x20mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing

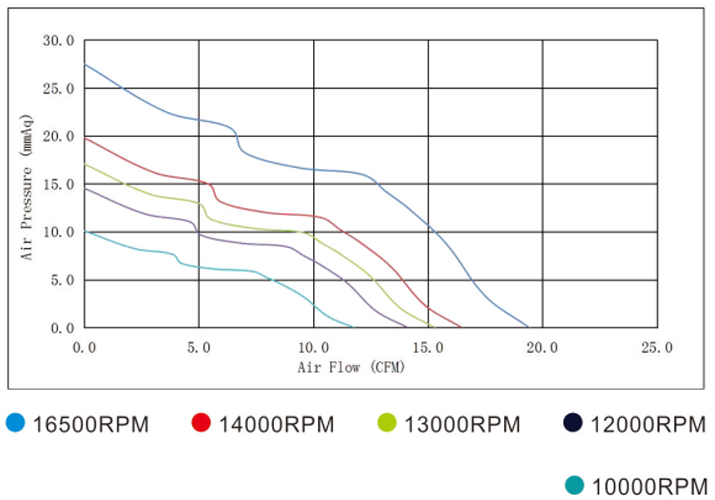

特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YDS4020B12G | B | 12 | 0.50 | 16500 | 19.42 | 27.49 | 49.80 | 26 |
| YDH4020B12G | B | 12 | 0.32 | 14000 | 16.48 | 19.79 | 46.20 | 26 |
| YDM4020B12G | B | 12 | 0.24 | 12000 | 14.13 | 14.54 | 42.90 | 26 |
| YDL4020B12G | B | 12 | 0.18 | 10000 | 11.77 | 10.10 | 38.90 | 26 |
| YDM4020B24G | B | 24 | 0.16 | 13000 | 15.30 | 17.06 | 44.60 | 26 |
| YDL4020B24G | B | 24 | 0.10 | 10000 | 11.77 | 10.10 | 38.90 | 26 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
