材料:玻璃纖維增強塑科；框葉PBT UL94V-0等級

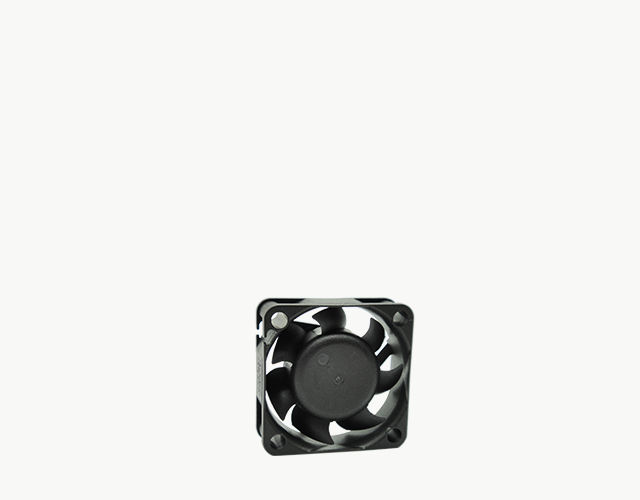

直流風扇
產品描述
Product Description
SIZE:40x40x15mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;Sleeve bearing -10℃ to +60℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing

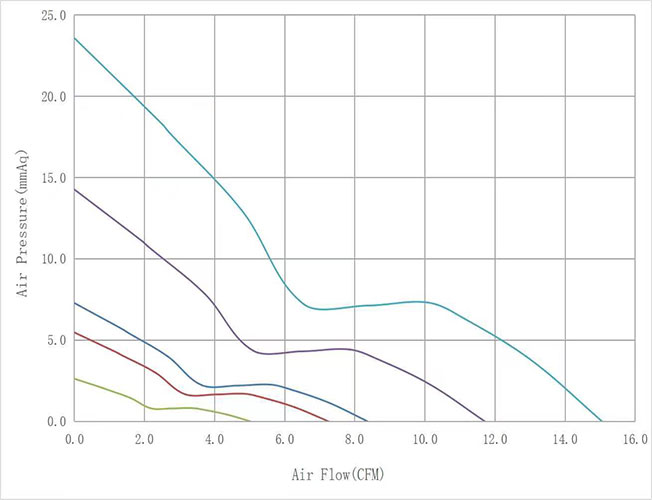

特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YDH4015X05 | C or B | 5 | 0.22 | 7500 | 8.36 | 7.28 | 28.73 | 23.5 |
| YDM4015X05 | C or B | 5 | 0.15 | 6500 | 7.25 | 5.47 | 25.63 | 23.5 |
| YDL4015X05 | C or B | 5 | 0.09 | 4500 | 5.02 | 2.62 | 17.64 | 23.5 |
| YDH4015X12 | C or B | 12 | 0.07 | 7500 | 8.36 | 7.28 | 28.73 | 23.5 |
| YDM4015X12 | C or B | 12 | 0.05 | 6500 | 7.25 | 5.47 | 25.63 | 23.5 |
| YDL4015X12 | C or B | 12 | 0.04 | 4500 | 5.02 | 2.62 | 17.64 | 23.5 |
| YDH4015X24 | C or B | 24 | 0.05 | 7500 | 8.36 | 7.28 | 28.73 | 23.5 |
| YDM4015X24 | C or B | 24 | 0.04 | 6500 | 7.25 | 5.47 | 25.63 | 23.5 |
| YDL4015X24 | C or B | 24 | 0.03 | 4500 | 5.02 | 2.62 | 17.64 | 23.5 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
