材料:玻璃纖維增強塑科；框葉PBT UL94V-0等級
直流風扇
產品描述
Product Description
SIZE:40x40x10mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;CycleSeal bearing -10℃ to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing

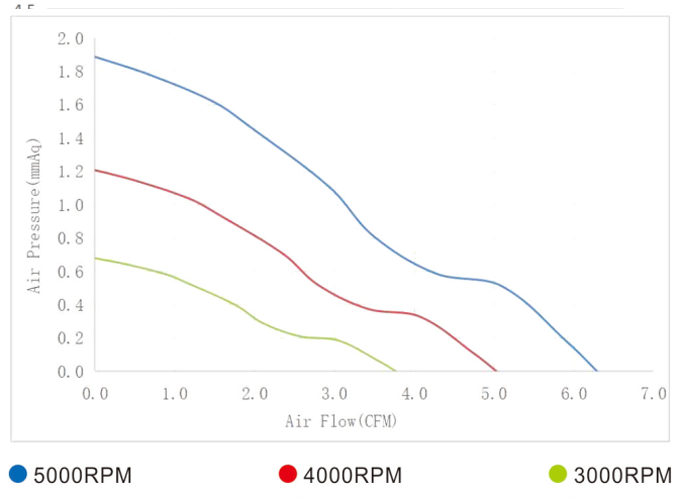

特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YDH4010X05G | C or B | 5 | 0.20 | 5000 | 6.29 | 1.88 | 21.21 | 14 |
| YDM4010X05G | C or B | 5 | 0.14 | 4000 | 5.03 | 1.20 | 16.37 | 14 |
| YDL4010X05G | C or B | 5 | 0.06 | 3000 | 3.77 | 0.67 | 10.12 | 14 |
| YDH4010X12G | C or B | 12 | 0.08 | 8000 | 6.29 | 1.88 | 21.21 | 14 |
| YDM4010X12G | C or B | 12 | 0.06 | 6500 | 5.03 | 1.20 | 16.37 | 14 |
| YDL4010X12G | C or B | 12 | 0.03 | 5000 | 3.77 | 0.67 | 10.12 | 14 |
| YDH4010X24G | C or B | 24 | 0.04 | 8000 | 6.29 | 1.88 | 21.21 | 14 |
| YDM4010X24G | C or B | 24 | 0.03 | 6500 | 5.03 | 1.20 | 16.37 | 14 |
| YDL4010X24G | C or B | 24 | 0.02 | 5000 | 3.77 | 0.67 | 10.12 | 14 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
