材料:玻璃纖維增強塑科；框葉PBT UL94V-0等級

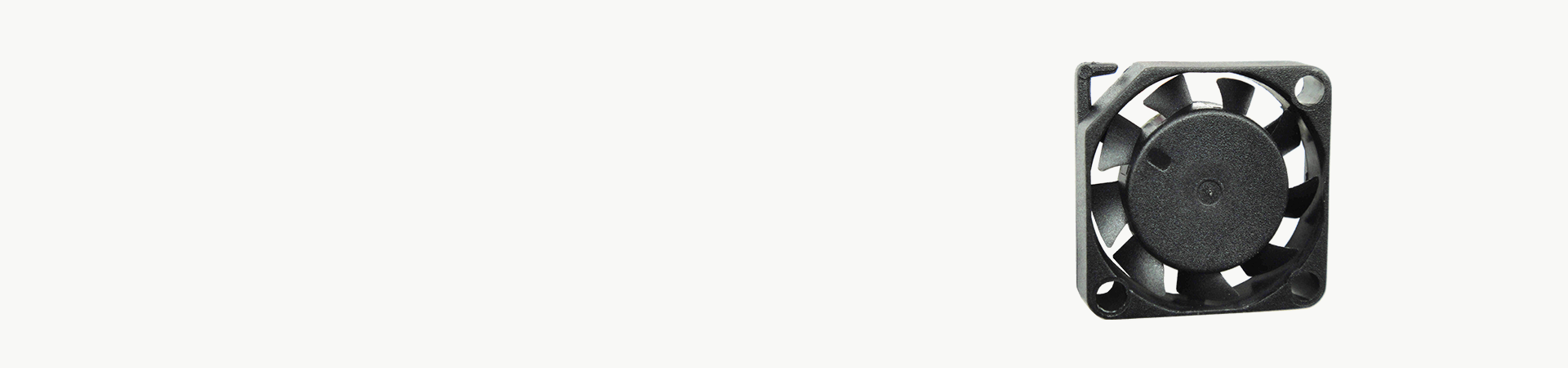

直流風扇

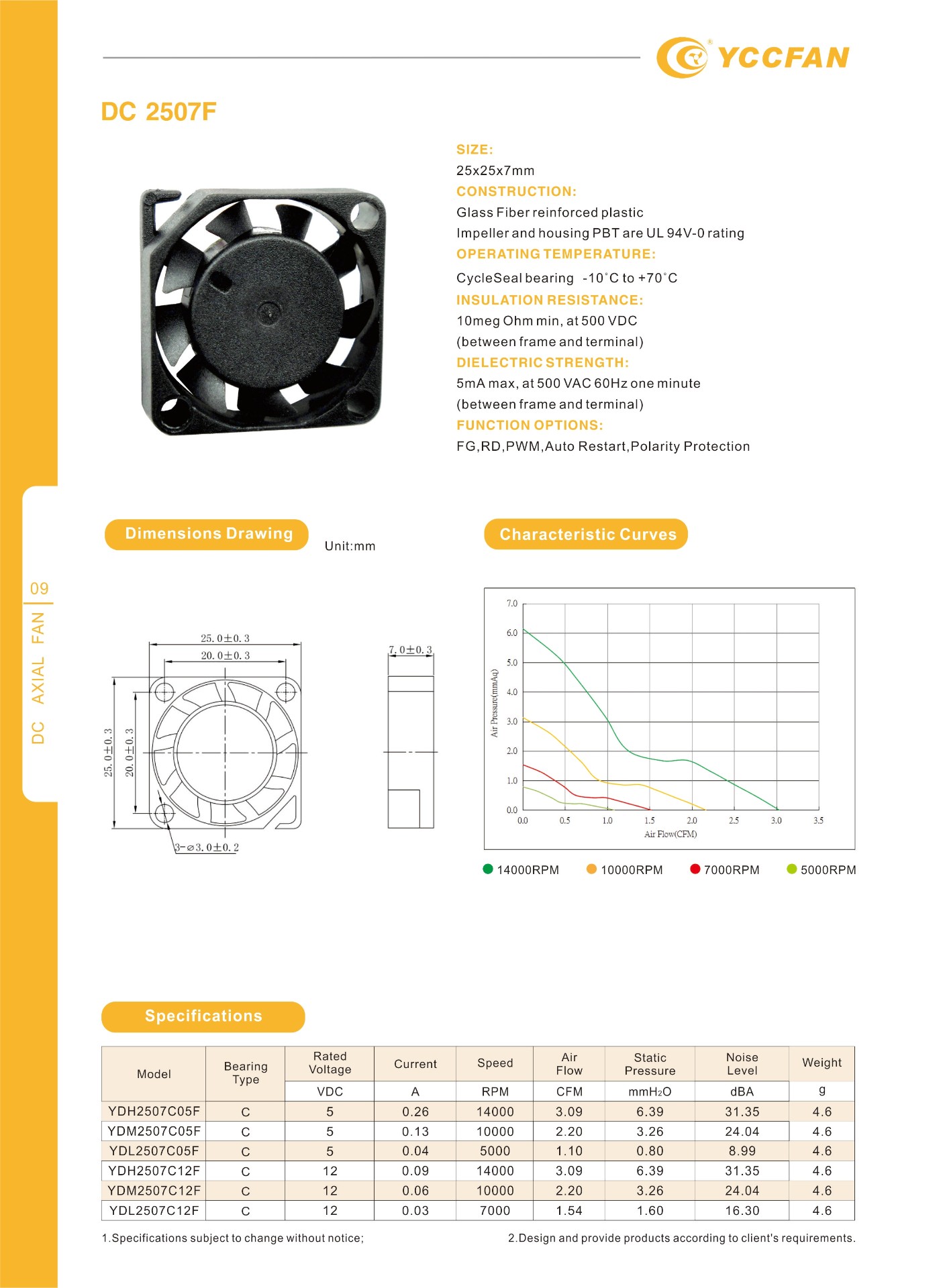

產品描述
Product Description
SIZE:25x25x7mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:CycleSeal bearing -10℃ to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing
特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YDH2507C05F | C | 5 | 0.26 | 14000 | 3.09 | 6.39 | 31.35 | 4.6 |
| YDM2507C05F | C | 5 | 0.13 | 10000 | 2.20 | 3.26 | 24.04 | 4.6 |
| YDL2507C05F | C | 5 | 0.04 | 50000 | 1.10 | 0.80 | 8.99 | 4.6 |
| YDH2507C12F | C | 12 | 0.09 | 14000 | 3.09 | 6.39 | 31.35 | 4.6 |
| YDM2507C12F | C | 12 | 0.06 | 10000 | 2.20 | 3.26 | 24.04 | 4.6 |
| YDL2507C12F | C | 12 | 0.03 | 7000 | 1.54 | 1.60 | 16.30 | 4.6 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
