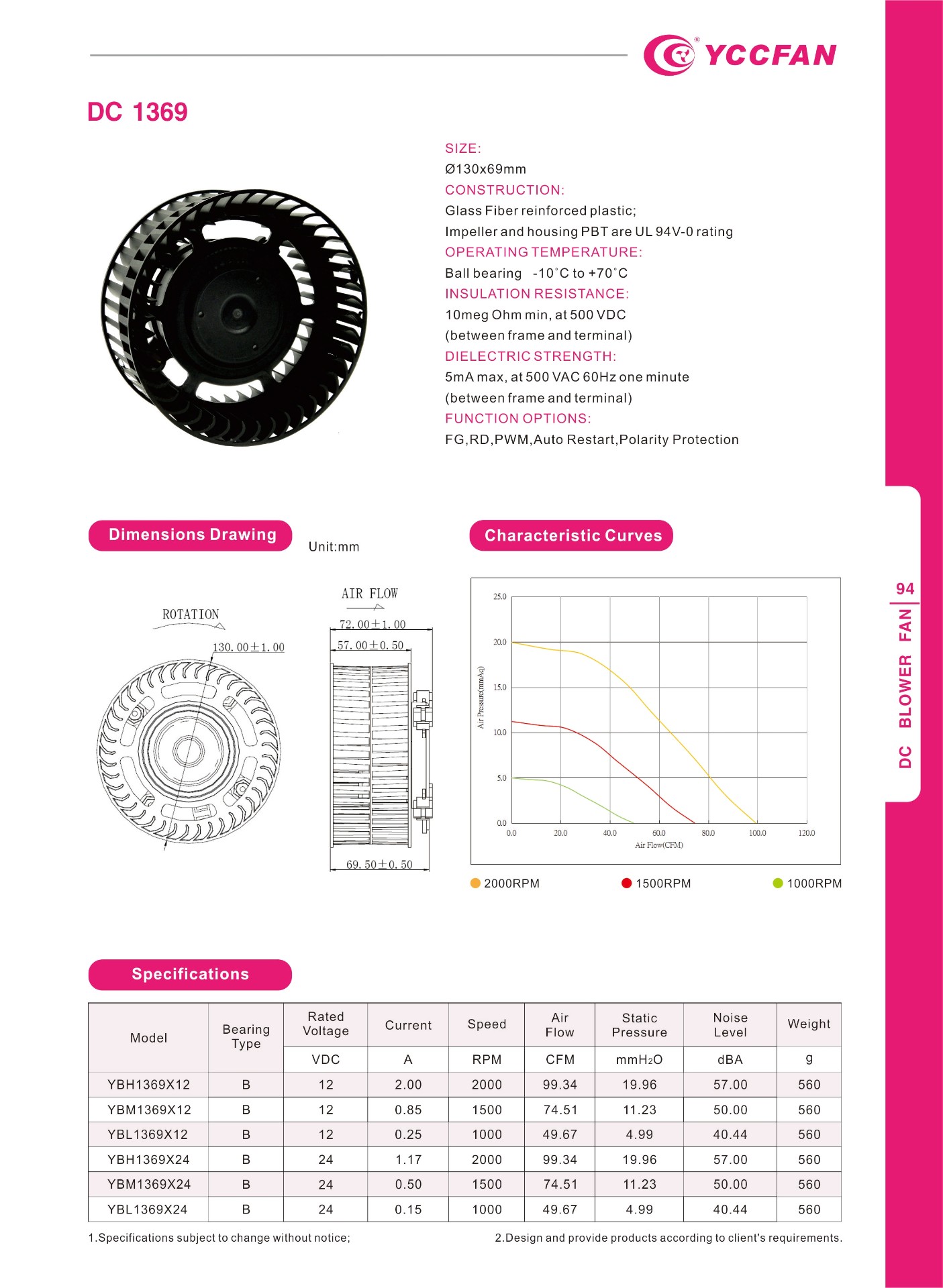

PRODUCT
材料：玻璃纖維增強塑料;框葉PBT UL 94V-0等級

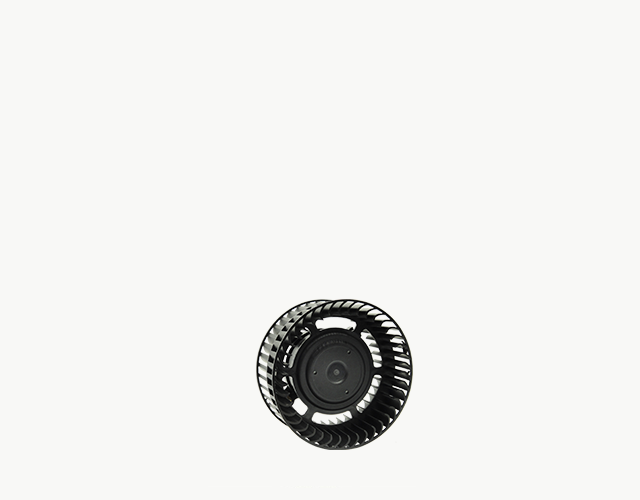

離心風機
產品描述
Product Description
SIZE:130x69mm
CONSTRUCTION:Glass Fiber reinforced plastic: Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing
特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | static Pressure | Noise level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YBH1369X12 | B | 12 | 2.00 | 2000 | 99.34 | 19.96 | 57.00 | 560 |
| YBM1369X12 | B | 12 | 0.85 | 1500 | 74.51 | 11.23 | 50.00 | 560 |
| YBL1369X12 | B | 12 | 0.25 | 1000 | 49.67 | 4.99 | 40.44 | 560 |
| YBH1369X24 | B | 24 | 1.17 | 2000 | 99.34 | 19.96 | 57.00 | 560 |
| YBM1369X24 | B | 24 | 0.50 | 1500 | 74.51 | 11.23 | 50.00 | 560 |
| YBL1369X24 | B | 24 | 0.15 | 1000 | 49.67 | 4.99 | 40.44 | 560 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
