材料：玻璃纖維增強塑料

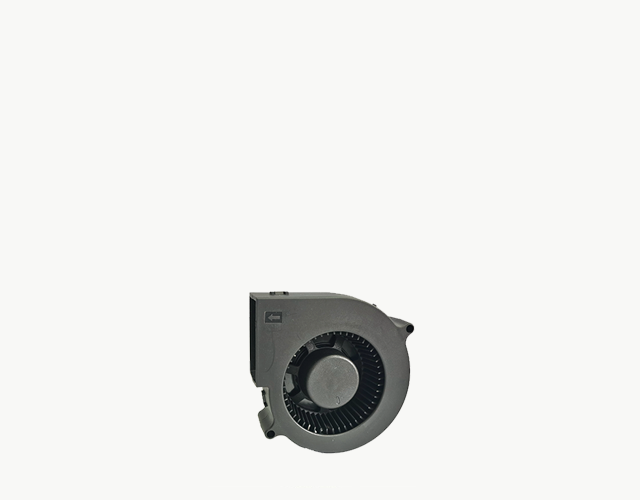

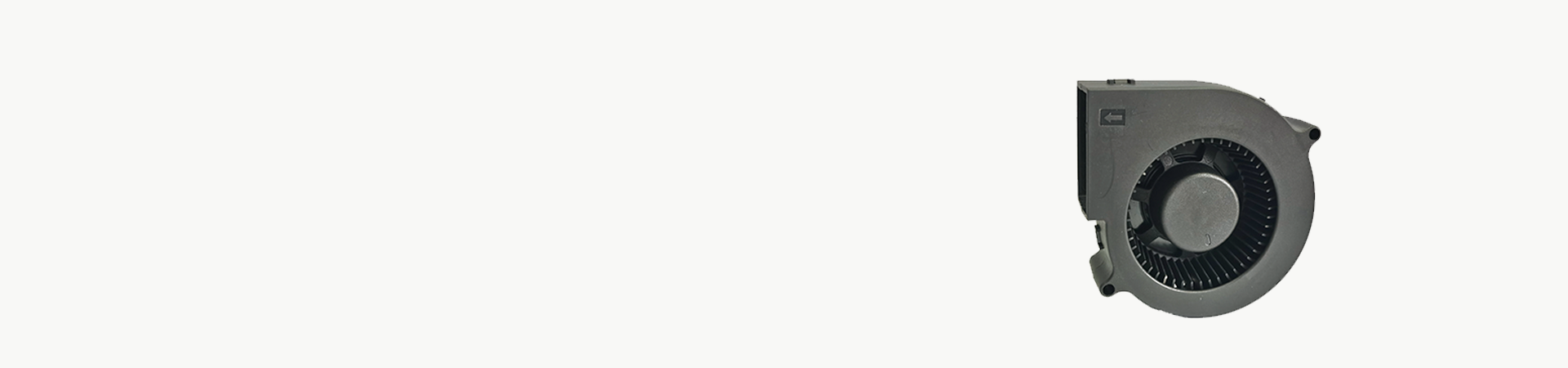

鼓風機風扇
產品描述

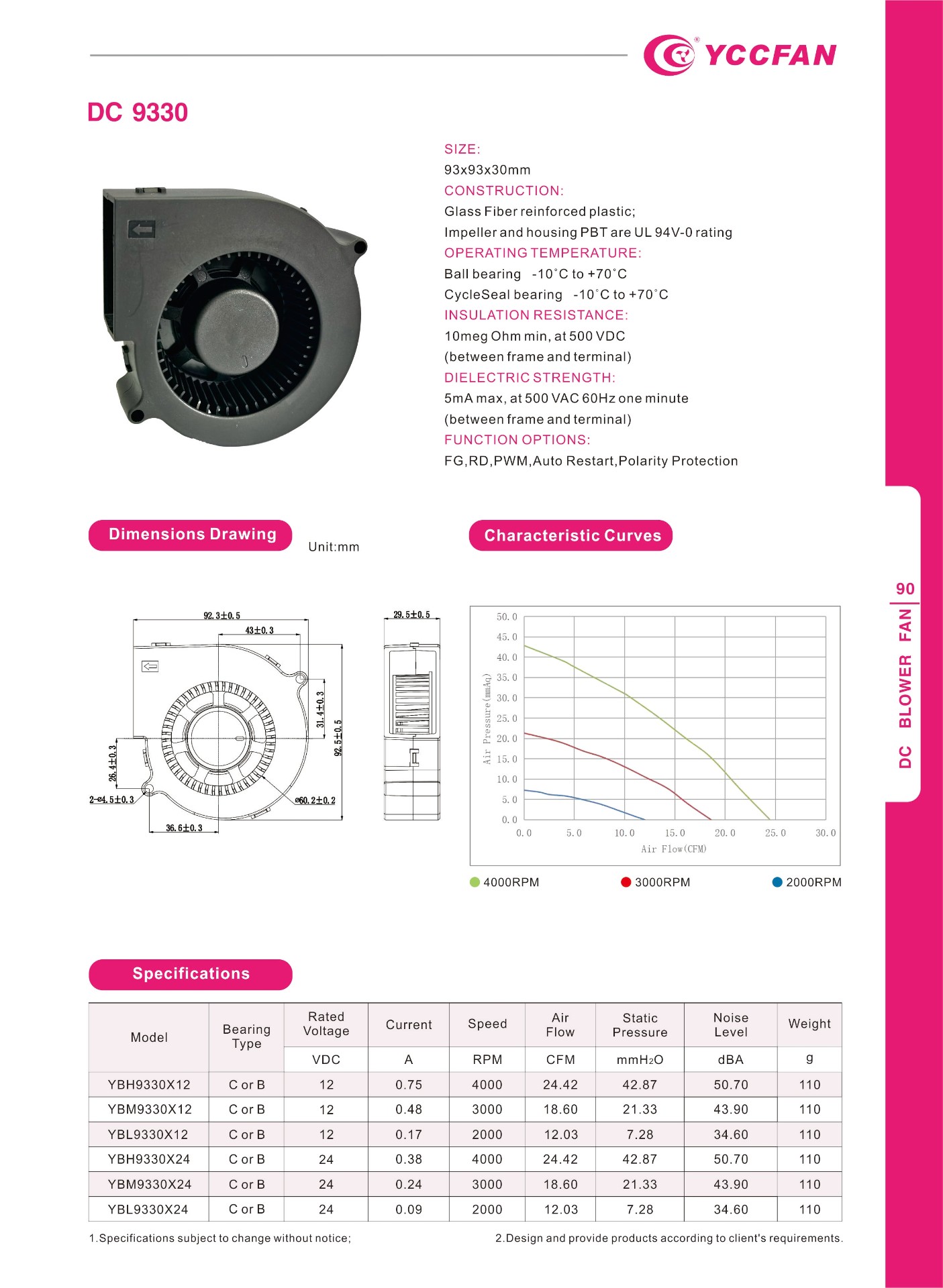

Product Description
SIZE:93x93x30mm
CONSTRUCTION:Glass Fiber reinforced plastic: Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;CycleSeal bearing -10℃ to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing
特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YBH9330X12 | C or B | 12 | 0.75 | 4000 | 24.42 | 42.87 | 50.70 | 110 |
| YBM9330X12 | C or B | 12 | 0.48 | 3000 | 18.60 | 21.33 | 43.90 | 110 |
| YBL9330X12 | C or B | 12 | 0.17 | 2000 | 12.03 | 7.28 | 34.60 | 110 |
| YBH9330X24 | C or B | 24 | 0.38 | 4000 | 24.42 | 42.87 | 50.70 | 110 |
| YBM9330X24 | C or B | 24 | 0.24 | 3000 | 18.60 | 21.33 | 43.90 | 110 |
| YBL9330X24 | C or B | 24 | 0.09 | 2000 | 12.03 | 7.28 | 34.60 | 110 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
