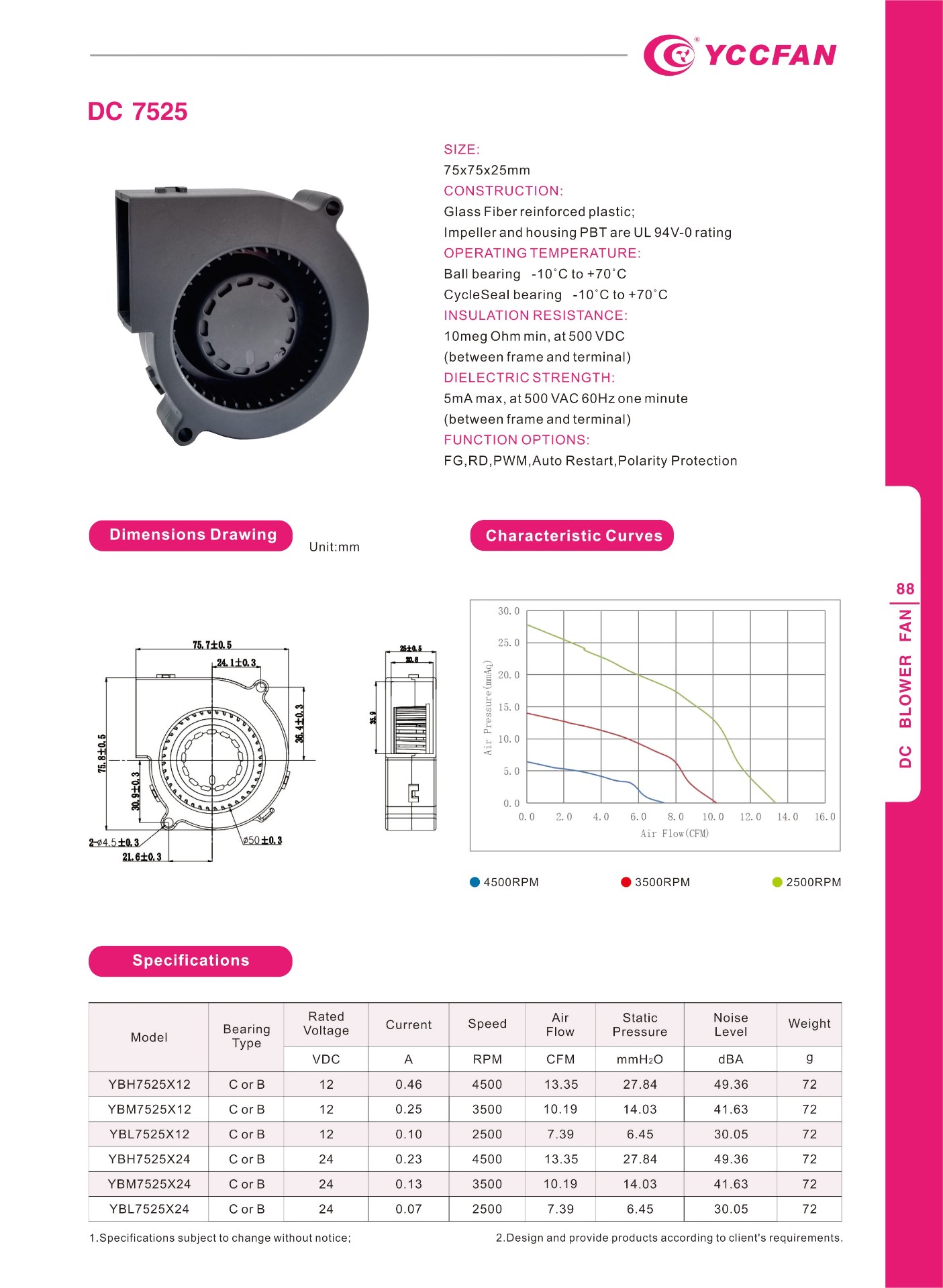

PRODUCT
材料：玻璃纖維增強塑料;框葉PBT UL 94V-0等級

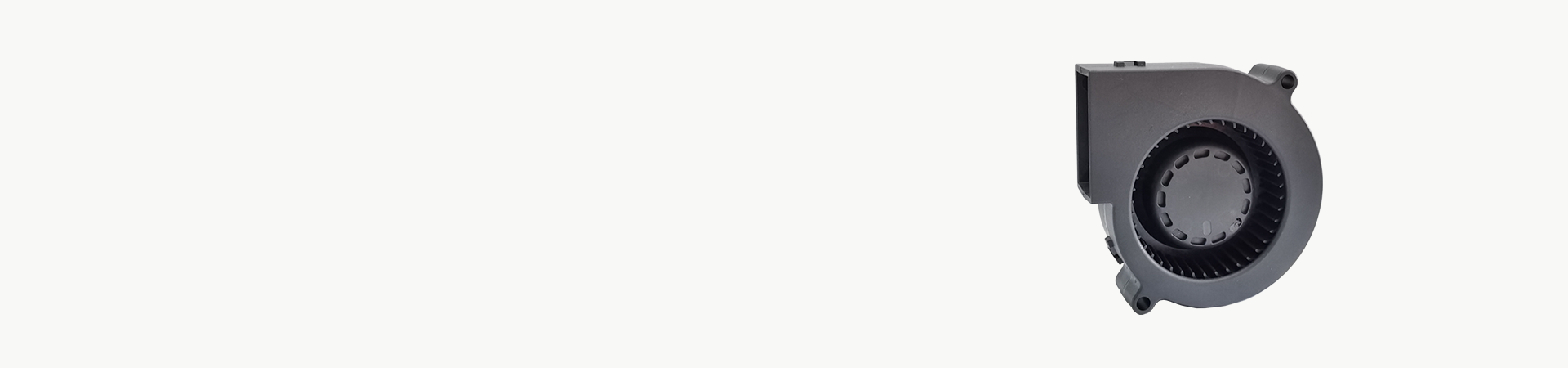

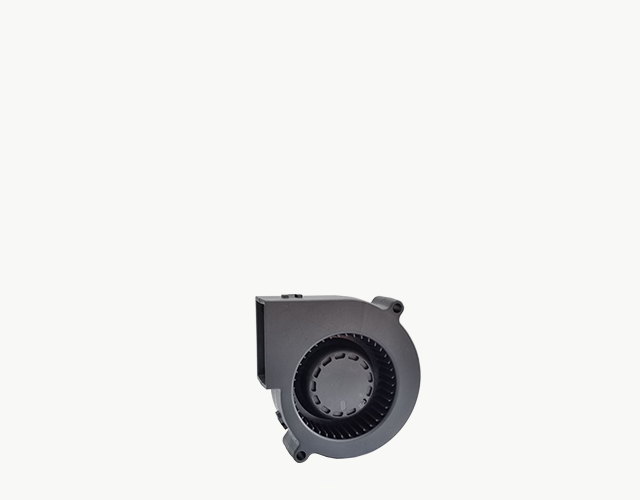

直流鼓風機
產品描述
Product Description
SIZE:75x75x25mm
CONSTRUCTION:Glass Fiber reinforced plastic: Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;CycleSeal bearing -10℃ to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing
特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YBH7525X12 | C or B | 12 | 0.46 | 4500 | 13.35 | 27.84 | 49.36 | 72 |
| YBM7525X12 | C or B | 12 | 0.25 | 3500 | 10.19 | 14.03 | 41.63 | 72 |
| YBL7525X12 | C or B | 12 | 0.10 | 2500 | 7.39 | 6.45 | 30.05 | 72 |
| YBH7525X24 | C or B | 24 | 0.23 | 4500 | 13.35 | 27.84 | 49.36 | 72 |
| YBM7525X24 | C or B | 24 | 0.13 | 3500 | 10.19 | 14.03 | 41.63 | 72 |
| YBL7525X24 | C or B | 24 | 0.07 | 2500 | 7.39 | 6.45 | 30.05 | 72 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
