PRODUCT
材料：玻璃纖維增強塑料;框葉PBT UL 94V-0等級

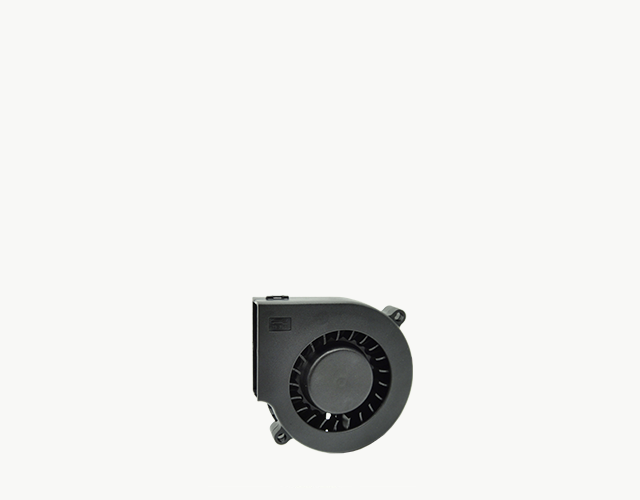

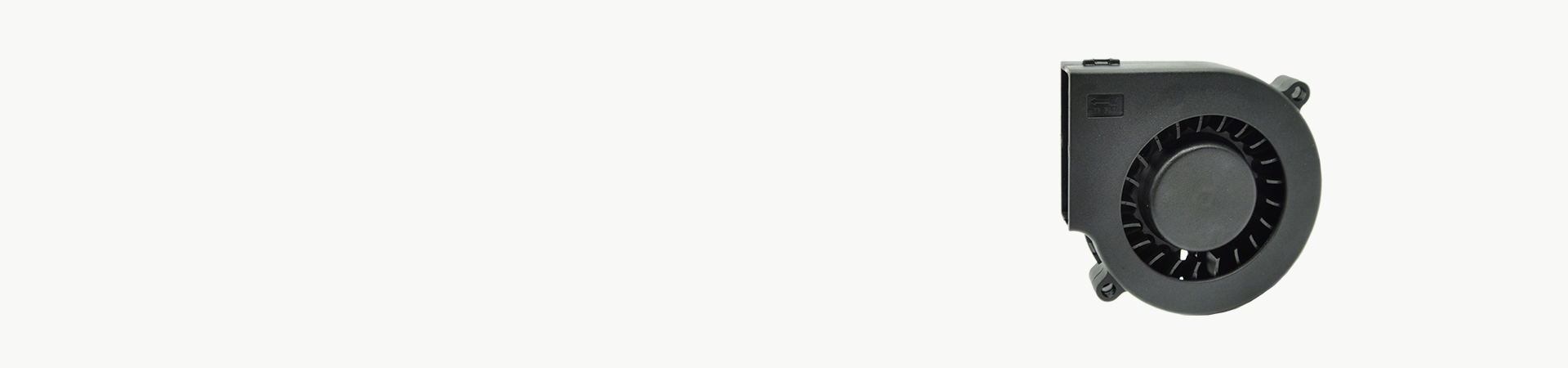

直流鼓風機
產品描述
Product Description
SIZE:75x75x15mm
CONSTRUCTION:Glass Fiber reinforced plastic: Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;Sleeve bearing -10℃ to +60℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing
特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| SIZE (mm) | MODEL | Bearing(X) | Voltage | Testing Current | SPEED (RPM) | AIR FLOW (CFM) | PRESSURE (mmAq) | NOISE (dBA) | W (g) |
| B7515 | YBH7515X12 | C or B | 12 | 0.50 | 5000 | 9.87 | 31.13 | 51.00 | 52 |
| YBM7515X12 | 0.20 | 4000 | 7.92 | 17.63 | 44.80 | 52 | |||
| YBL7515X12 | 0.12 | 3000 | 5.87 | 8.99 | 36.10 | 52 | |||
| YBH7515X24 | 24 | 0.20 | 5000 | 9.87 | 31.13 | 51.00 | 52 | ||
| YBM7515X24 | 0.14 | 4000 | 7.92 | 17.63 | 44.80 | 52 | |||
| YBL7515X24 | 0.06 | 3000 | 5.87 | 8.99 | 36.10 | 52 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
