材料：玻璃纖維增強塑料;框葉PBT UL 94V-0等級

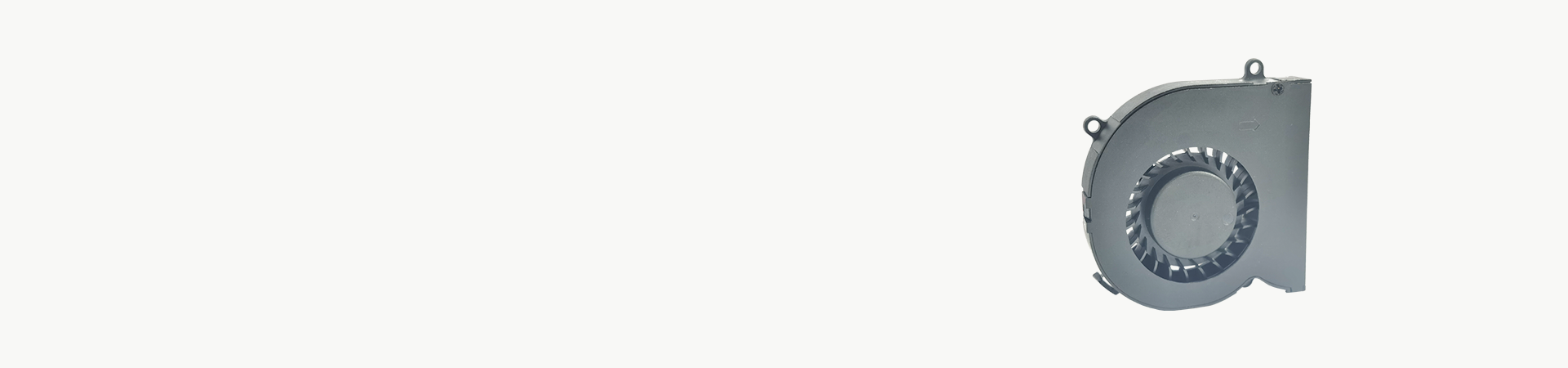

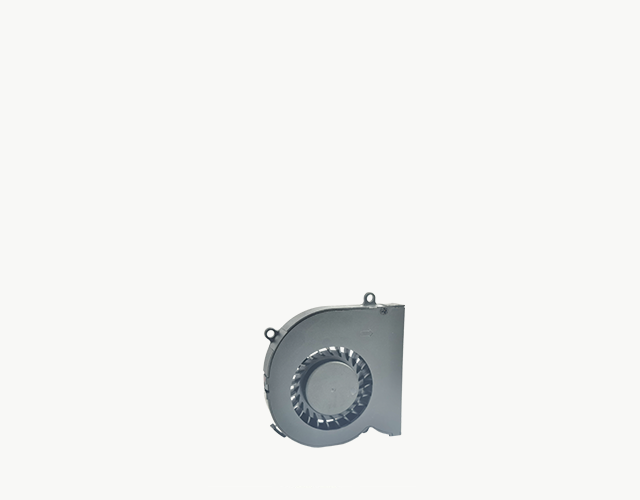

直流鼓風機
產品描述
Product Description

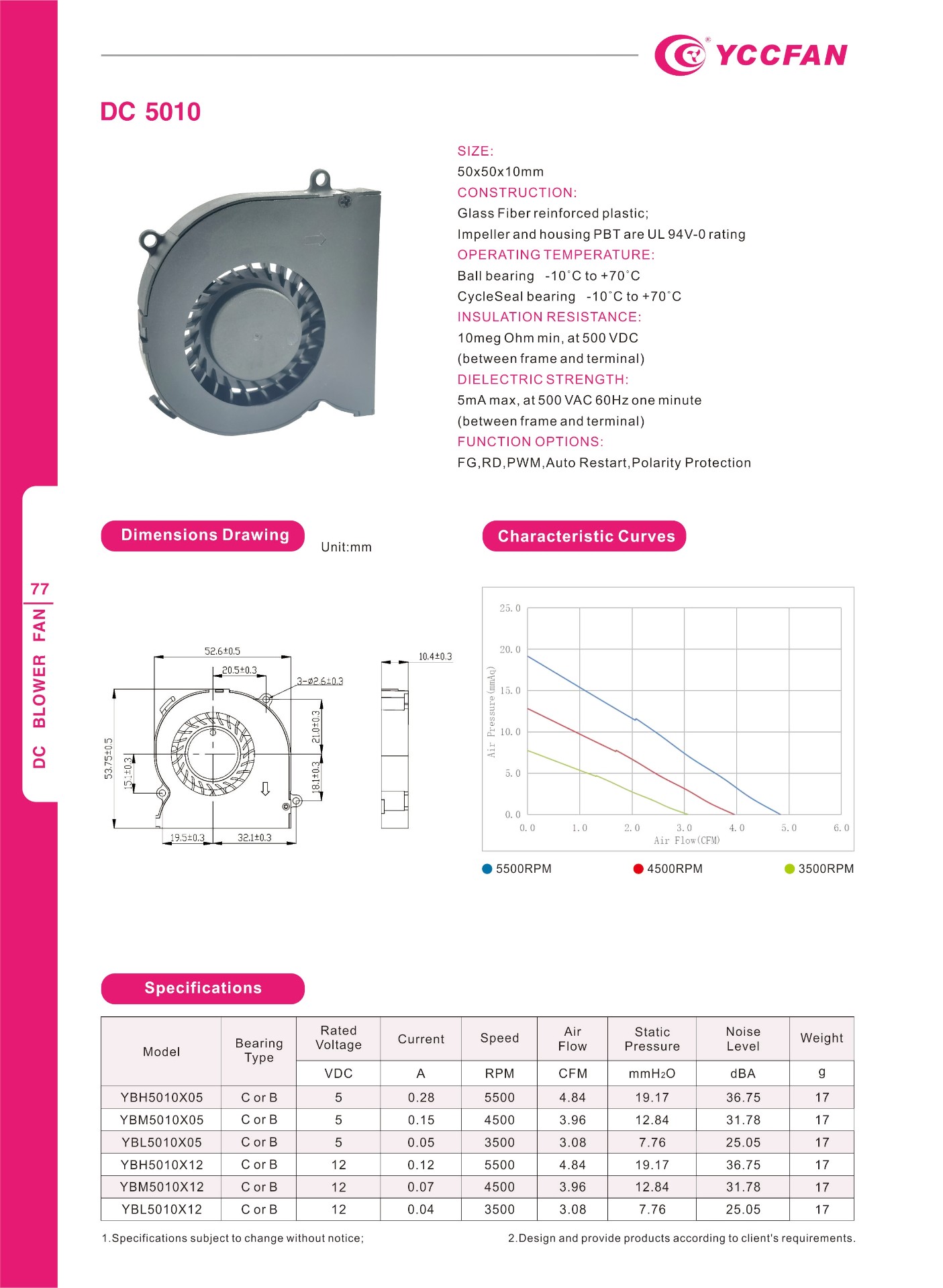

SIZE:50x50x10mm
CONSTRUCTION:Glass Fiber reinforced plastic: Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;CycleSeal bearing -10℃ to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing
特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Urrent | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YBH5010X05 | C or B | 5 | 0.28 | 5500 | 4.84 | 19.17 | 36.75 | 17 |
| YBM5010X05 | C or B | 5 | 0.15 | 4500 | 3.96 | 12.84 | 31.78 | 17 |
| YBL5010X05 | C or B | 5 | 0.05 | 3500 | 3.08 | 7.76 | 25.05 | 17 |
| YBH5010X12 | C or B | 12 | 0.12 | 5500 | 4.84 | 19.17 | 36.75 | 17 |
| YBM5010X12 | C or B | 12 | 0.07 | 4500 | 3.96 | 12.84 | 31.78 | 17 |
| YBL5010X12 | C or B | 12 | 0.04 | 3500 | 3.08 | 7.76 | 25.05 | 17 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
