PRODUCT
材料：玻璃纖維增強塑料;框葉PBT UL 94V-0等級,不鏽鋼蓋板

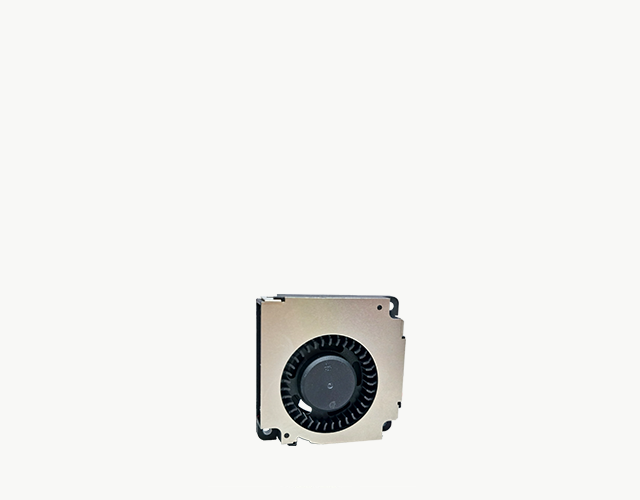

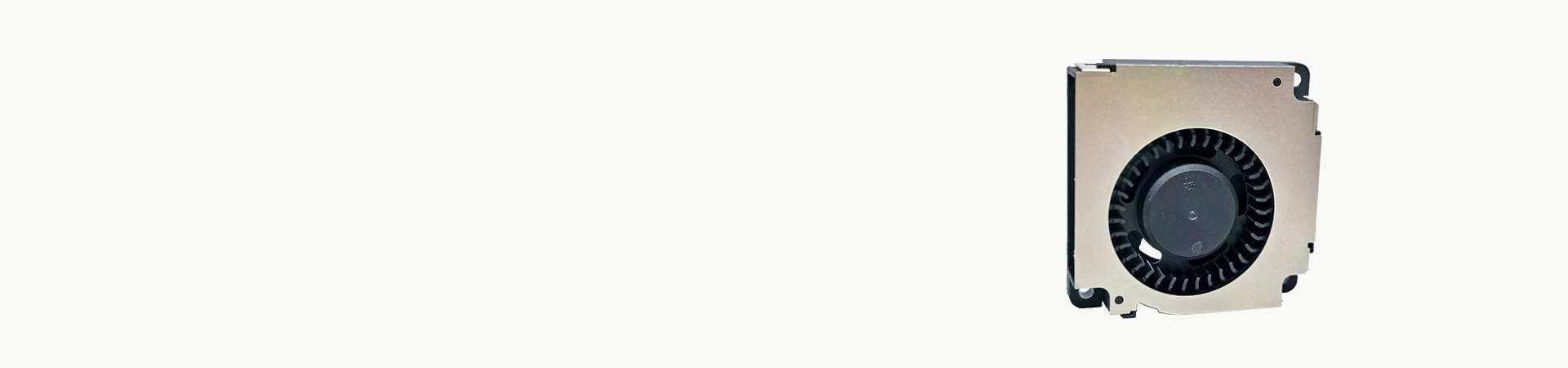

直流鼓風機
產品描述

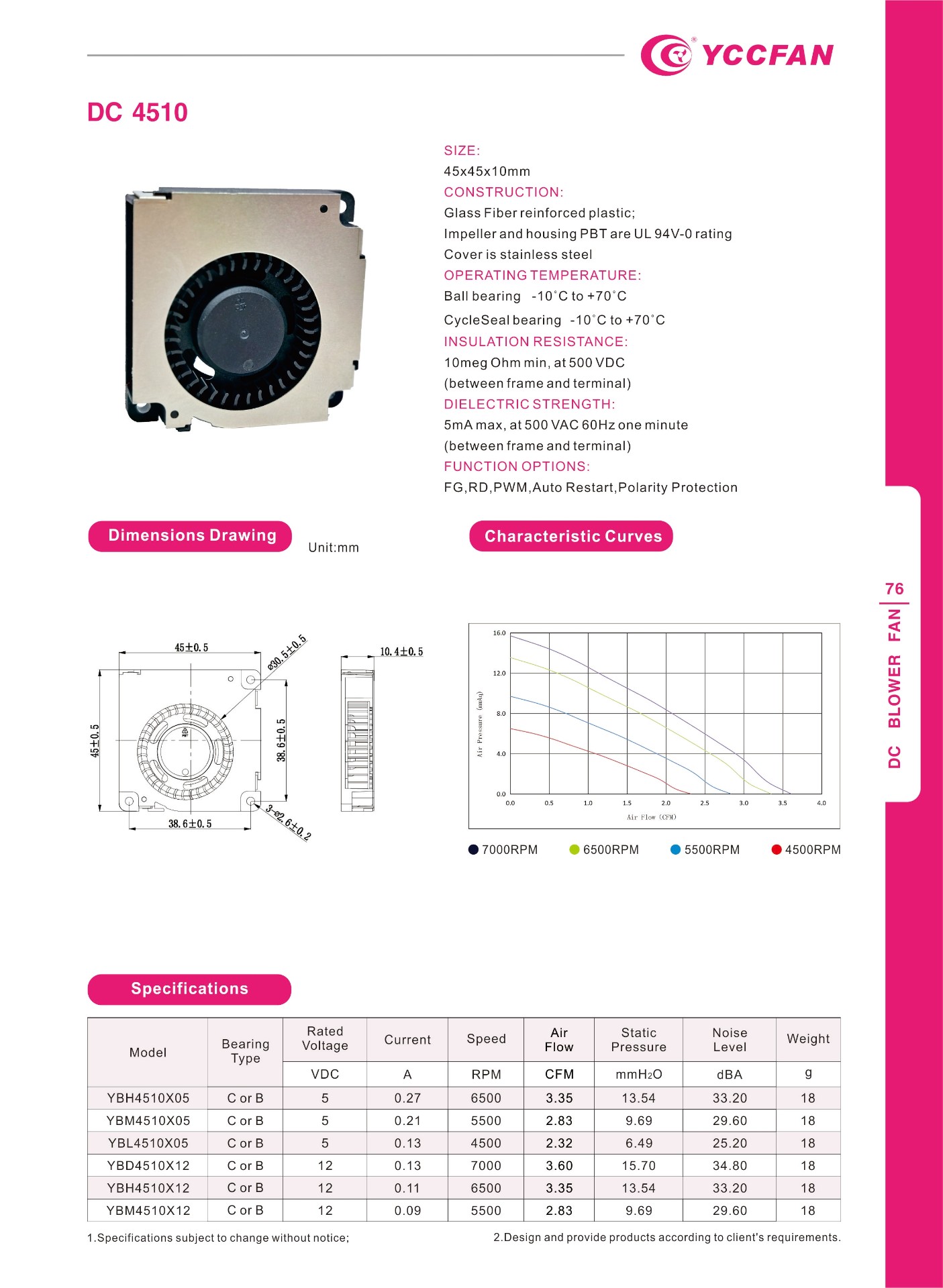

Product Description
SIZE:45x45x10mm
CONSTRUCTION:Glass Fiber reinforced plastic; Impeller and housing PBT are UL 94V-0 rating Cover is stainless steel
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;CycleSeal bearing -10℃ to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing
特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YBH4510X05 | C or B | 5 | 0.27 | 6500 | 3.35 | 13.54 | 33.20 | 18 |
| YBM4510X05 | C or B | 5 | 0.21 | 5500 | 2.83 | 9.69 | 29.60 | 18 |
| YBL4510X05 | C or B | 5 | 0.13 | 4500 | 2.32 | 6.49 | 25.20 | 18 |
| YBD4510X12 | C or B | 12 | 0.13 | 7000 | 3.60 | 15.70 | 34.80 | 18 |
| YBH4510X12 | C or B | 12 | 0.11 | 6500 | 3.35 | 13.54 | 33.20 | 18 |
| YBM4510X12 | C or B | 12 | 0.09 | 5500 | 2.83 | 9.69 | 29.60 | 18 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
