材料：玻璃纖維增強塑料;框葉PBT UL 94V-0等級

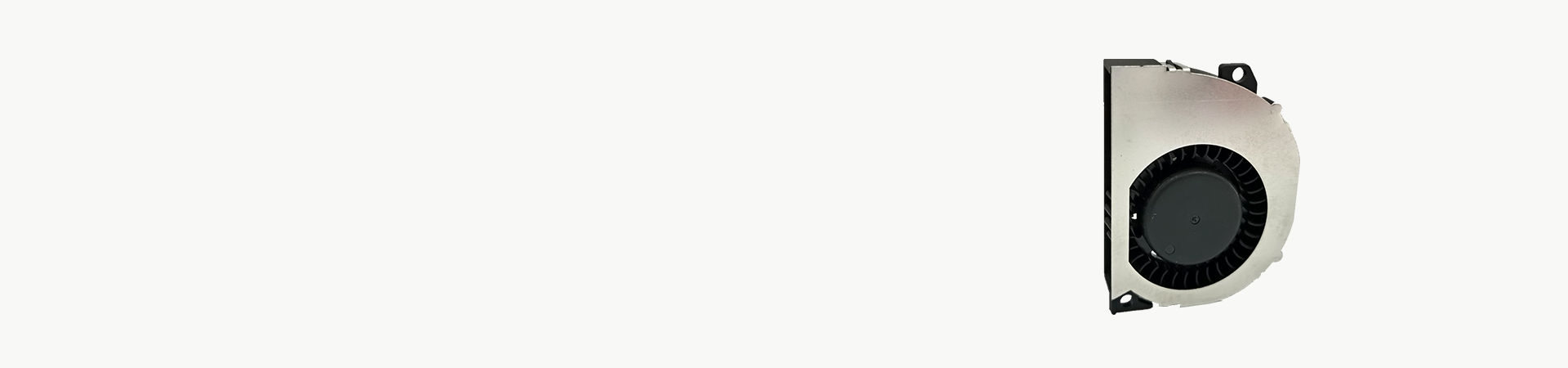

直流鼓風機
產品描述
Product Description
SIZE:52X40X10mm
CONSTRUCTION:Glass Fiber reinforced plastic; Impeller and housing PBT are UL 94V-0 rating Cover is stainless steel
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;CycleSeal bearing -10℃ to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing
特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Urrent | Speed | Air Flow | Static Pressure | Noise level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YBH4010X05J | C or B | 5 | 0.32 | 5500 | 2.89 | 6.81 | 32.50 | 16 |
| YBM4010X05J | C or B | 5 | 0.22 | 4500 | 2.37 | 4.56 | 28.20 | 16 |
| YBL4010X05J | C or B | 5 | 0.15 | 4000 | 2.10 | 3.60 | 25.60 | 16 |
| YBH4010X12J | C or B | 12 | 0.20 | 6000 | 3.16 | 8.10 | 34.50 | 16 |
| YBM4010×12J | C or B | 12 | 0.14 | 5000 | 2.63 | 5.63 | 30.50 | 16 |
| YBL4010X12J | C or B | 12 | 0.07 | 4000 | 2.10 | 3.60 | 25.60 | 16 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
