材料：玻璃纖維增強塑料;框葉PBT UL 94V-0等級

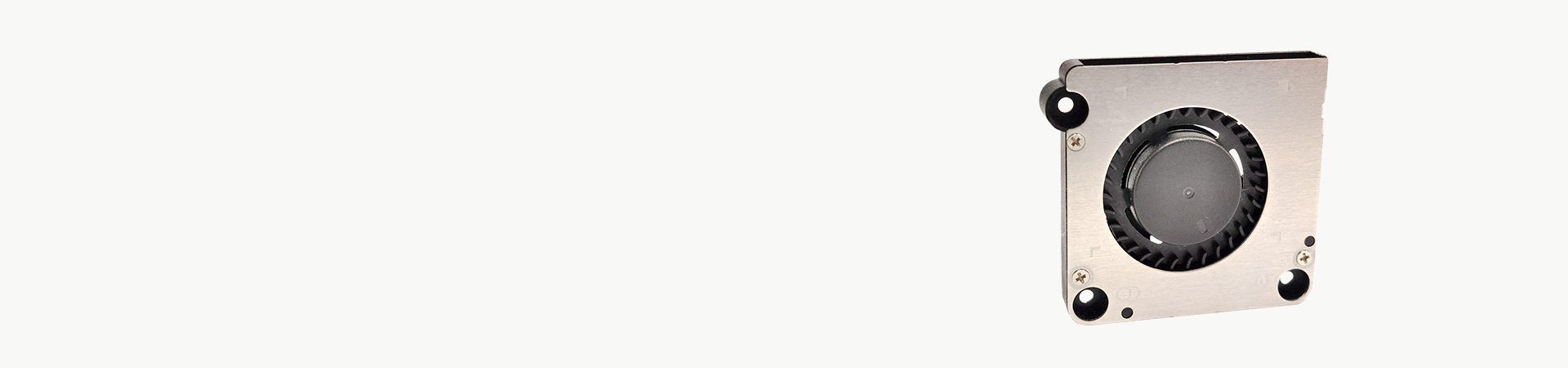

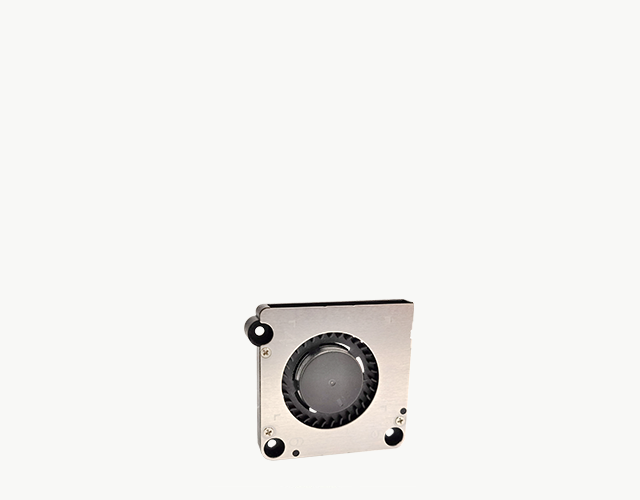

微型鼓風機
產品描述
Product Description
SIZE:40x40x7mm
CONSTRUCTION:Glass Fiber reinforced plastic; Impeller and housing PBT are UL 94V-0 rating Cover is stainless steel
OPERATING TEMPERATURE:CycleSeal bearing -10℃ to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing
特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YBH4007C05 | C | 5 | 0.18 | 6500 | 1.85 | 18.11 | 29.50 | 11 |
| YBM4007C05 | C | 5 | 0.12 | 5000 | 1.42 | 9.26 | 23.80 | 11 |
| YBL4007C05 | C | 5 | 0.06 | 3500 | 0.99 | 4.53 | 21.75 | 11 |
| YBH4007C12 | C | 12 | 0.10 | 6500 | 1.85 | 18.11 | 29.50 | 11 |
| YBM4007C12 | C | 12 | 0.06 | 5000 | 1.42 | 9.26 | 23.80 | 11 |
| YBL4007C12 | C | 12 | 0.03 | 3500 | 0.99 | 4.53 | 21.75 | 11 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
