材料：玻璃纖維增強塑料;框葉PBT UL 94V-0等級

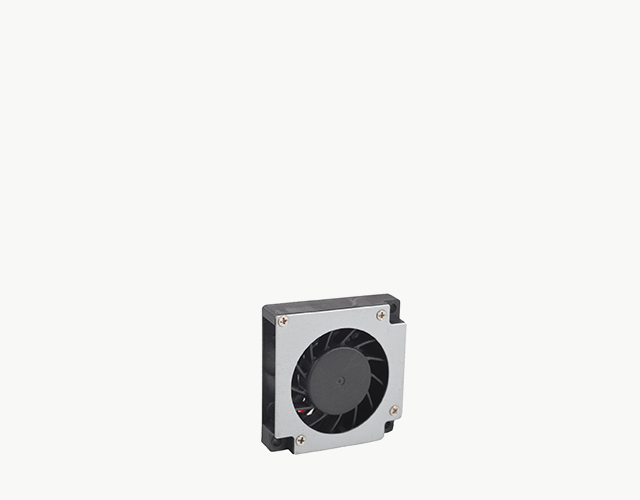

微型鼓風機
產品描述
Product Description
SIZE:35x35x7mm
CONSTRUCTION:Glass Fiber reinforced plastic; Impeller and housing PBT are UL 94V-0 rating Cover is stainless steel
OPERATING TEMPERATURE:Sleeve bearing -10℃ to +60℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing
特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| SIZE (mm) | MODEL | Bearing(X) | Voltage | Testing Current | SPEED (RPM) | AIR FLOW (CFM) | PRESSURE (mmAq) | NOISE (dBA) | W (g) |
| B3507 | YBH3507C05 | C | 5 | 0.14 | 6500 | 0.98 | 2.66 | 29.25 | 15 |
| YBM3507C05 | 0.09 | 5500 | 0.83 | 1.91 | 25.63 | 15 | |||
| YBL3507C05 | 0.07 | 4500 | 0.68 | 1.28 | 21.27 | 15 | |||
| YBH3507C12 | 12 | 0.07 | 6500 | 0.98 | 2.66 | 29.25 | 15 | ||
| YBM3507C12 | 0.06 | 5500 | 0.83 | 1.91 | 25.63 | 15 | |||
| YBL3507C12 | 0.06 | 4500 | 0.68 | 1.28 | 21.27 | 15 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
