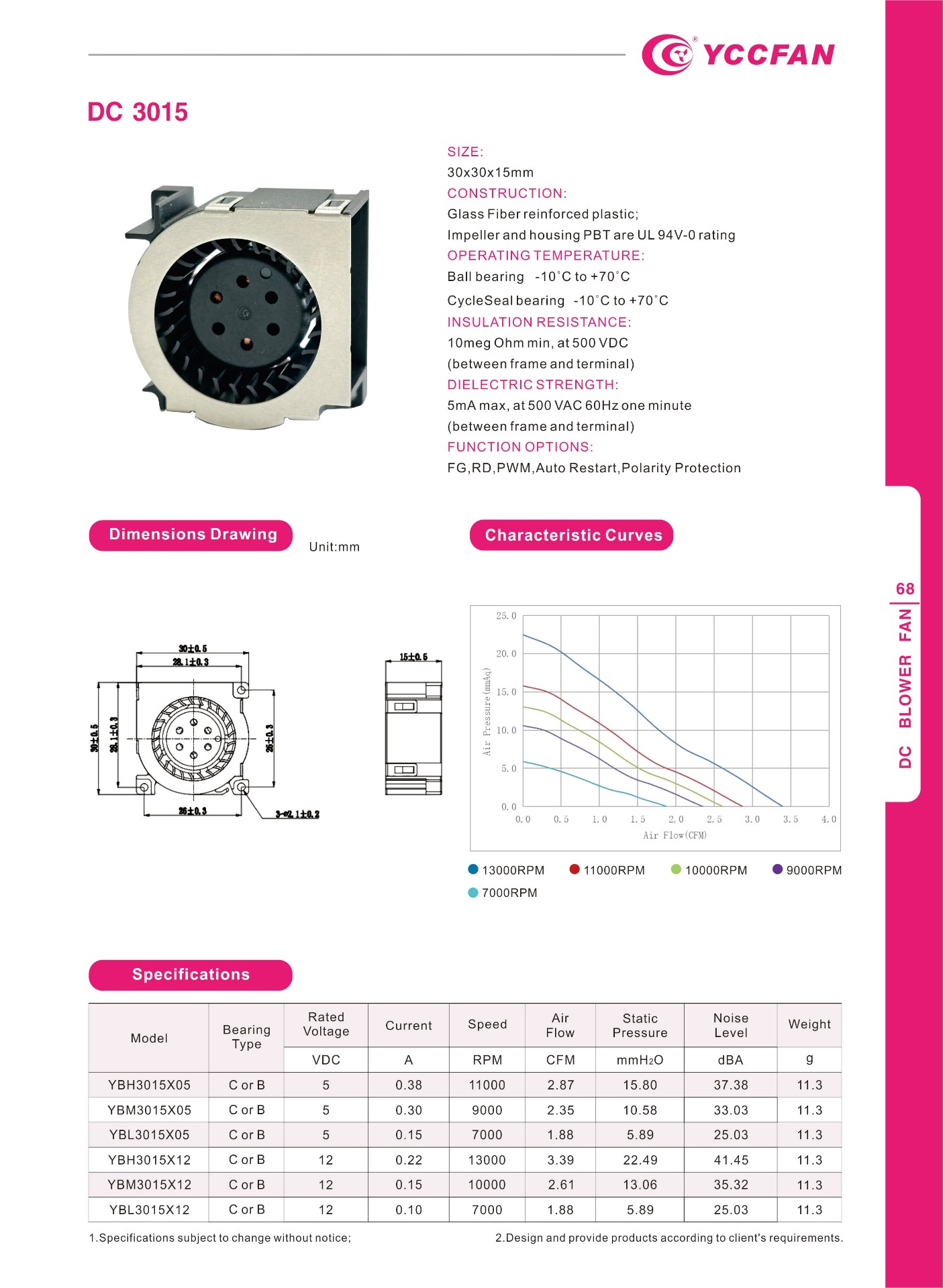

PRODUCT
材料：玻璃纖維增強塑料;框葉PBT UL 94V-0等級;不鏽鋼金屬蓋板

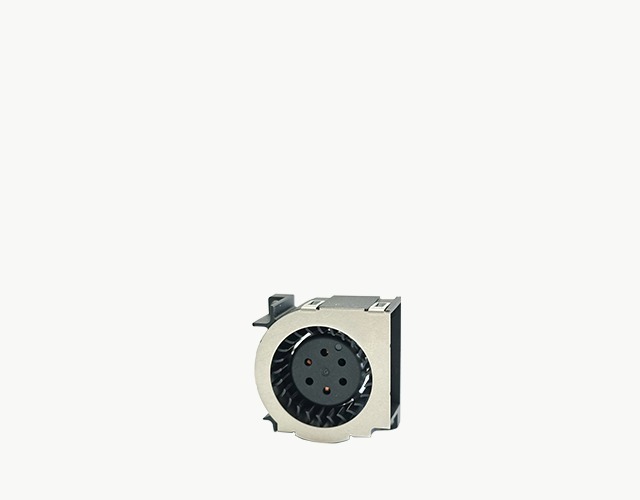

微型鼓風機
產品描述
Product Description
SIZE:30x30x15mm
CONSTRUCTION:Glass Fiber reinforced plastic; Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;CycleSeal bearing -10℃ to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing
特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | current | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YBH3015X05 | C or B | 5 | 0.38 | 11000 | 2.87 | 15.80 | 37.38 | 11.3 |
| YBM3015X05 | C or B | 5 | 0.30 | 9000 | 2.35 | 10.58 | 33.03 | 11.3 |
| YBL3015X05 | C or B | 5 | 0.15 | 7000 | 1.88 | 5.89 | 25.03 | 11.3 |
| YBH3015X12 | C or B | 12 | 0.22 | 13000 | 3.39 | 22.49 | 41.45 | 11.3 |
| YBM3015X12 | C or B | 12 | 0.15 | 10000 | 2.61 | 13.06 | 35.32 | 11.3 |
| YBL3015X12 | C or B | 12 | 0.10 | 7000 | 1.88 | 5.89 | 25.03 | 11.3 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
