鋁合金及玻璃纖維增強塑料;外框鋁合金,
扇葉PBT UL94V-0等級;罩極式馬達結構(gòu );阻抗保護;導(dǎo )線(xiàn )式或插座式;

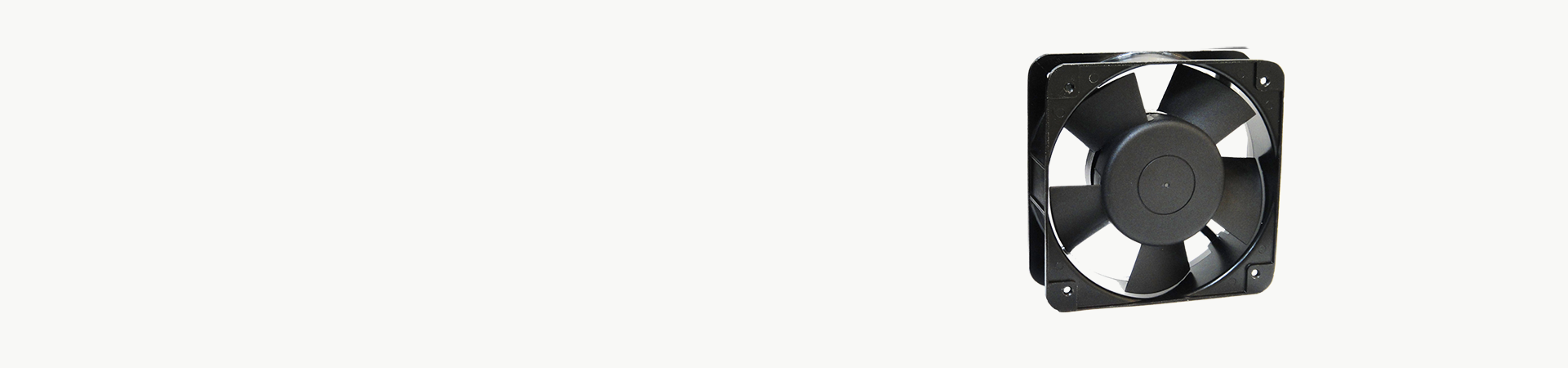

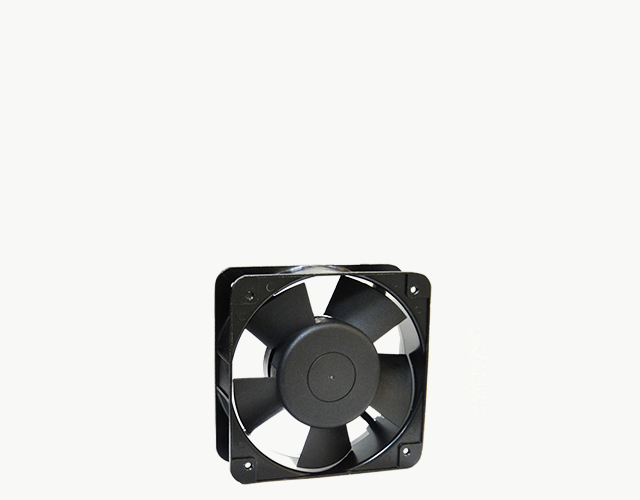

散熱風扇
產品描述
Product Description
尺寸: 150x150x50mm；
結構(gòu ):鋁合金及玻璃纖維增強塑料;外框鋁合金,扇葉PBT UL94V-0等級;罩極式馬達結構(gòu );阻抗保護;導(dǎo )線(xiàn )式或插座式;
工作溫度:滾珠軸承- 10°C到+70°C/含油軸承-10°C到+60°C
絕緣耐壓:加2000VAC/60Hz 一分鐘,漏電流小於1mA (在外框與端子之間)

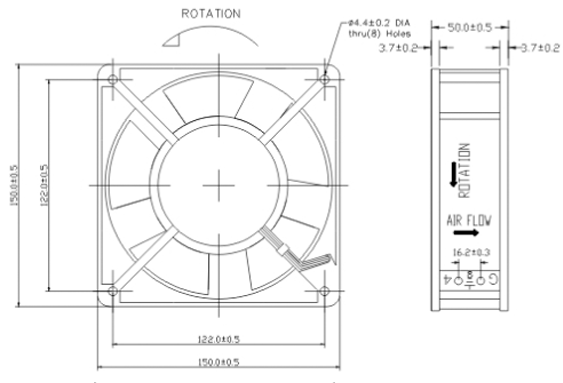

尺寸圖
Dimensions Drawing

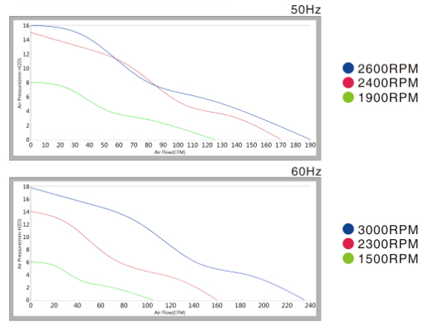

特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Fre- quency | urrent | Power | Speed | Noise Level | Air Flow | Static Pressure | Weight | |
| VAC | Hz | A | W | RPM | dBA | M³/min | CFM | mmH2O | g | ||
| YAH1550B1 | Ball | 100~125 | 50/60 | 0.50/0.45 | 37/36 | 2600/3000 | 45/50 | 5.37/6.65 | 190/235 | 16.0/17.8 | 880 |
| YAH1550S1 | sleeve | 100~125 | 50/60 | 0.50/0.45 | 37/36 | 2600/3000 | 45150 | 5.37/6.65 | 190/235 | 16.0/17.8 | 880 |
| YAM1550B1 | Ball | 100~125 | 50/60 | 0.41/0.39 | 32/30 | 2400/2300 | 41/40 | 4.0/4.5 | 170/160 | 15/14 | 880 |
| YAM1550S1 | Sleeve | 100~125 | 50/60 | 0.41/0.39 | 32/30 | 2400/2300 | 41/40 | 4.0/4.5 | 170/160 | 15/14 | 880 |
| YAL1550B1 | Ball | 100~125 | 50/60 | 0.35/0.35 | 26/25 | 1900/1500 | 32/30 | 3.5/3.0 | 125/105 | 8/6 | 880 |
| YAL1550S1 | Sleeve | 10o~125 | 50/60 | 0.35/0.35 | 26/25 | 1900/1500 | 32/30 | 3.5/3.0 | 125/105 | 8/6 | 880 |
| YAH1550B2 | Ball | 220~240 | 50/60 | 0.22/0.21 | 34/33 | 2600/3000 | 45/50 | 5.37/6.65 | 190/235 | 16.0/17.8 | 880 |
| YAH1550S2 | sleeve | 220~240 | 50/60 | 0.22/0.21 | 34/33 | 2600/3000 | 45/50 | 5.37/6.65 | 190/235 | 16.0/17.8 | 880 |
| YAM1550B2 | Ball | 220~240 | 50/60 | 0.19/0.18 | 30/28 | 2400/2300 | 41/40 | 4.0/4.5 | 170/160 | 15/14 | 880 |
| YAM1550S2 | Sleeve | 220~240 | 50/60 | 0.19/0.18 | 30/28 | 2400/2300 | 41/40 | 4.0/4.5 | 170/160 | 15/14 | 880 |
| YAL1550B2 | Ball | 220~240 | 50/60 | 0.16/0.16 | 26/25 | 1900/1500 | 32/30 | 3.5/3.0 | 125/105 | 8/6 | 880 |
| YAL1550S2 | Sleeve | 220~240 | 50/60 | 0.16/0.16 | 26/25 | 1900/1500 | 32/30 | 3.5/3.0 | 125/105 | 8/6 | 880 |
| YAH1550B3 | Ball | 380 | 50 | 0.11 | 34 | 2600 | 45 | 5.37 | 190 | 15 | 880 |
| YAH1550S3 | sleeve | 380 | 50 | 0.11 | 34 | 2600 | 45 | 5.37 | 190 | 15 | 880 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
