材料：玻璃纖維增強塑料;框葉PBT UL 94V-0等級；不鏽鋼蓋板

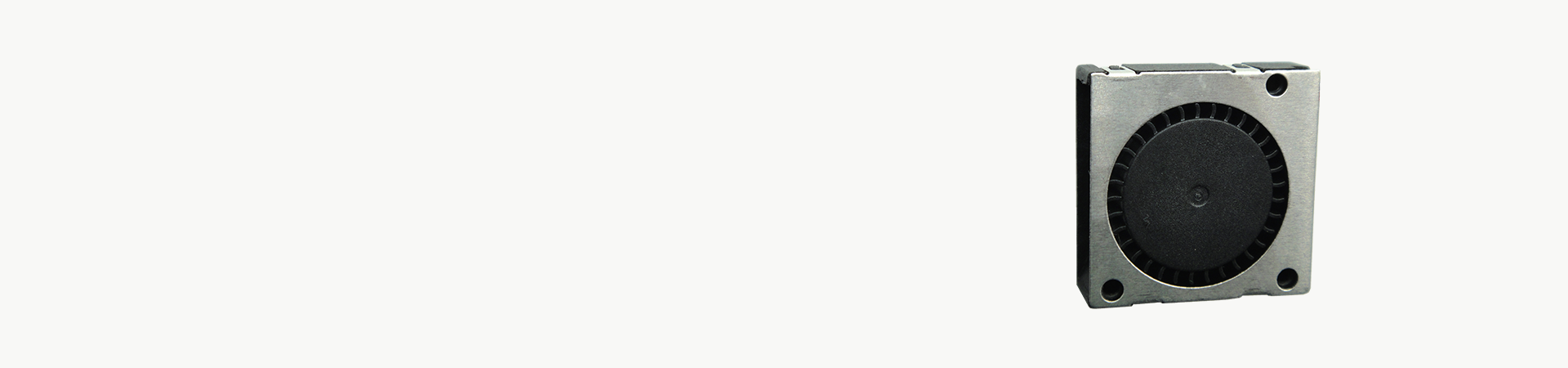

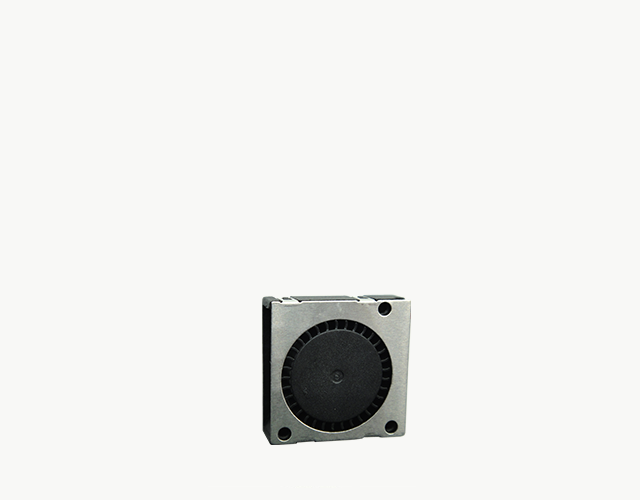

微型鼓風機
產品描述
Product Description
SIZE:25x25x7mm
CONSTRUCTION:Glass Fiber reinforced plastic; Impeller and housing PBT are UL 94V-0 rating Cover is stainless steel
OPERATING TEMPERATURE:CycleSeal bearing -10℃ to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection

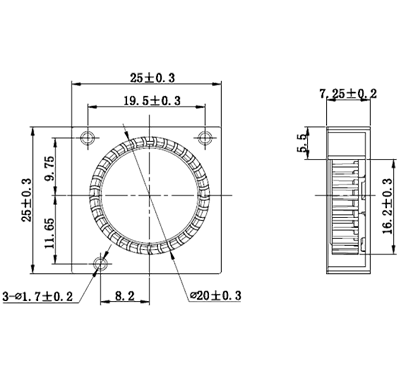

尺寸圖
Dimensions Drawing
特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | current | Speed | Air Flow | static Pressure | Noise Level | weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YBH2507C05F | C | 5 | 0.16 | 14000 | 0.50 | 3.63 | 28.50 | 5.4 |
| YBM2507C05F | C | 5 | 0.08 | 10000 | 0.36 | 1.85 | 21.20 | 5.4 |
| YBL2507C05F | C | 5 | 0.04 | 5000 | 0.18 | 0.46 | 6.14 | 5.4 |
| YBH2507C12F | C | 12 | 0.07 | 14000 | 0.50 | 3.63 | 28.50 | 5.4 |
| YBM2507C12F | C | 12 | 0.05 | 10000 | 0.36 | 1.85 | 21.20 | 5.4 |
| YBL2507C12F | C | 12 | 0.04 | 700o | 0.25 | 0.91 | 13.45 | 5.4 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
