材料：玻璃纖維增強塑料;框葉PBT UL 94V-0等級

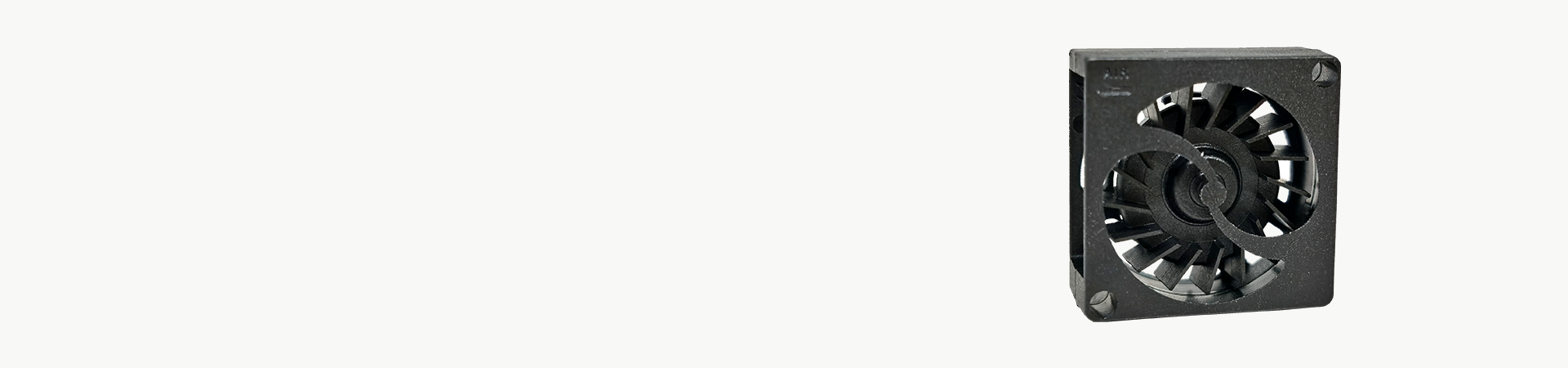

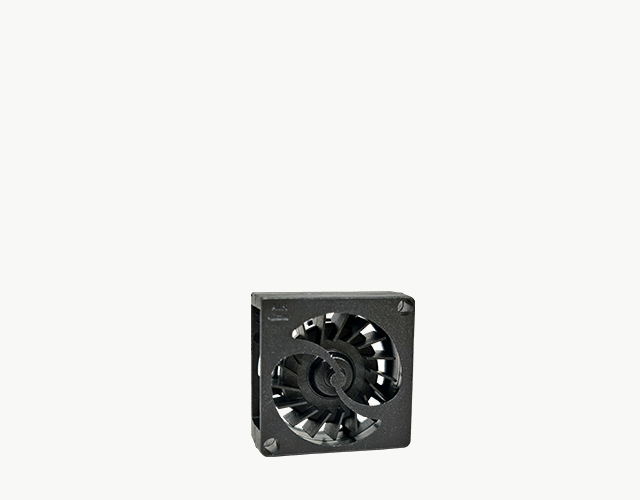

微型鼓風機
產品描述
Product Description
SIZE:20x20x8mm
CONSTRUCTION:Glass Fiber reinforced plastic; Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:CycleSeal bearing -10℃ to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing
特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated voltage | Current | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YBH2008C05F | C | 5 | 0.10 | 12000 | 0.69 | 3.63 | 22.00 | 3.3 |
| YBM2008C05F | C | 5 | 0.08 | 10000 | 0.58 | 2.52 | 18.00 | 3.3 |
| YBH2008C05 | C | 5 | 0.08 | 12000 | 0.41 | 2.38 | 20.70 | 3.0 |
| YBM2008C05 | C | 5 | 0.05 | 10000 | 0.34 | 1.65 | 16.70 | 3.0 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
