材料:玻璃纖維增強塑科；框葉PBT UL94V-0等級
直流風扇
產品描述
Product Description
SIZE:30x30x10mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;CycleSeal bearing -10℃ to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing

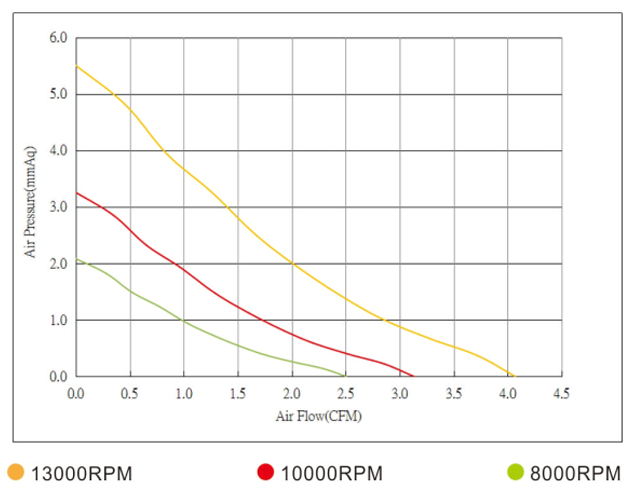

特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YDH3010X05 | C or B | 5 | 0.25 | 13000 | 4.56 | 8.84 | 31.63 | 8 |
| YDM3010X05 | C or B | 5 | 0.21 | 10000 | 3.51 | 5.23 | 25.36 | 8 |
| YDL3010X05 | C or B | 5 | 0.11 | 8000 | 2.81 | 3.35 | 20.00 | 8 |
| YDH3010X12 | C or B | 12 | 0.11 | 13000 | 4.10 | 5.58 | 37.30 | 8 |
| YDM3010X12 | C or B | 12 | 0.07 | 10000 | 3.15 | 3.30 | 31.60 | 8 |
| YDL3010X12 | C or B | 12 | 0.06 | 8000 | 2.52 | 2.11 | 26.75 | 8 |
| YDH3010X24 | C or B | 24 | 0.06 | 13000 | 4.56 | 8.84 | 31.63 | 8 |
| YDM3010X24 | C or B | 24 | 0.05 | 10000 | 3.51 | 5.23 | 25.36 | 8 |
| YDL3010X24 | C or B | 24 | 0.04 | 8000 | 2.81 | 3.35 | 20.00 | 8 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
