材料：玻璃纖維增強塑料;框葉PBT UL 94V-0等級

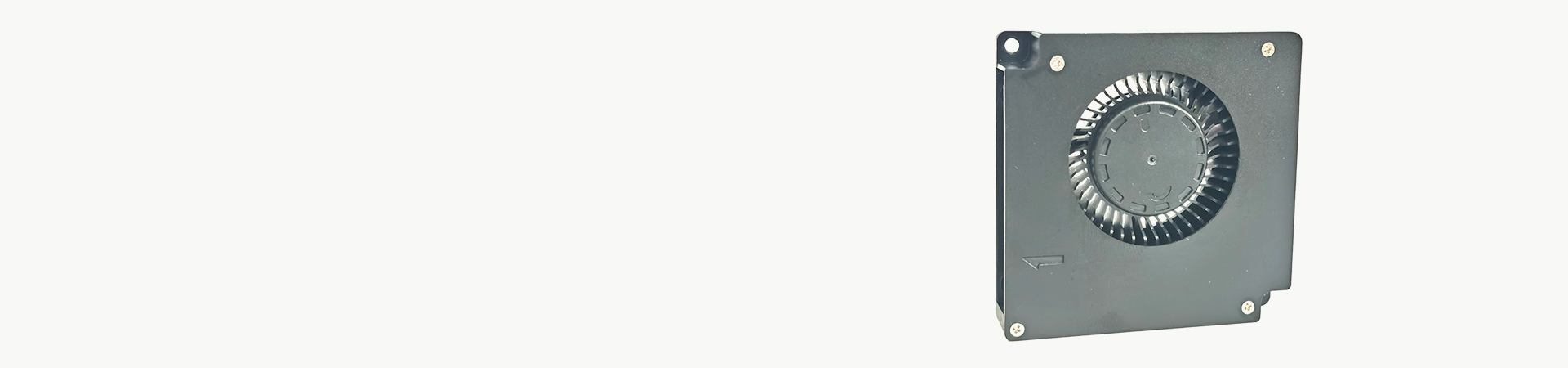

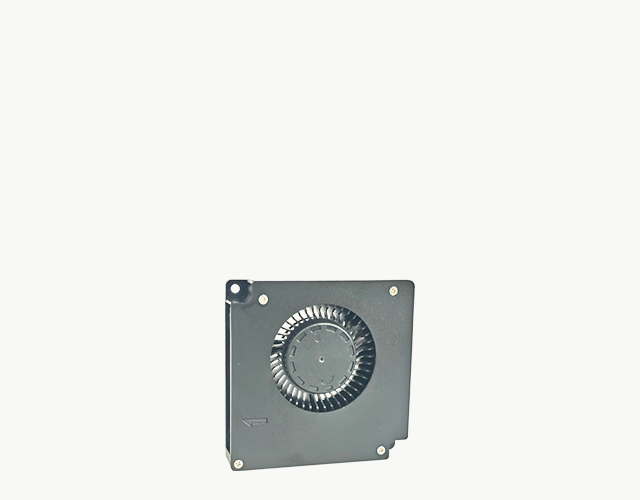

直流鼓風機
產品描述
Product Description
SIZE:55x55x12mm
CONSTRUCTION:Glass Fiber reinforced plastic; Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;CycleSeal bearing -10℃ to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing
特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | urrent | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YBH5512X05 | C or B | 5 | 0.40 | 5000 | 4.57 | 12.80 | 34.55 | 20 |
| YBM5512X05 | C or B | 5 | 0.21 | 4000 | 3.68 | 8.27 | 29.70 | 20 |
| YBL5512X05 | C or B | 5 | 0.09 | 3000 | 2.74 | 4.61 | 23.45 | 20 |
| YBH5512X12 | C or B | 12 | 0.14 | 5000 | 4.57 | 12.80 | 34.55 | 20 |
| YBM5512X12 | C or B | 12 | 0.08 | 4000 | 3.68 | 8.27 | 29.70 | 20 |
| YBL5512X12 | C or B | 12 | 0.05 | 3000 | 2.74 | 4.61 | 23.45 | 20 |
| YBH5512X24 | C or B | 24 | 0.07 | 5000 | 4.57 | 12.80 | 34.55 | 20 |
| YBM5512X24 | C or B | 24 | 0.05 | 4000 | 3.68 | 8.27 | 29.70 | 20 |
| YBL5512X24 | C or B | 24 | 0.03 | 3000 | 2.74 | 4.61 | 23.45 | 20 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
