材料：玻璃纖維增強塑料;框葉PBT UL 94V-0等級

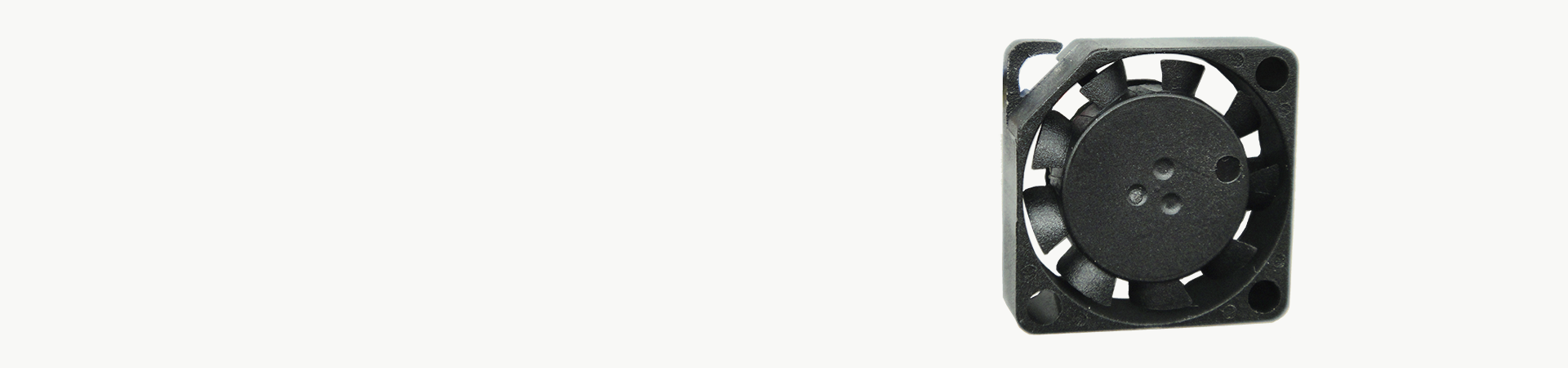

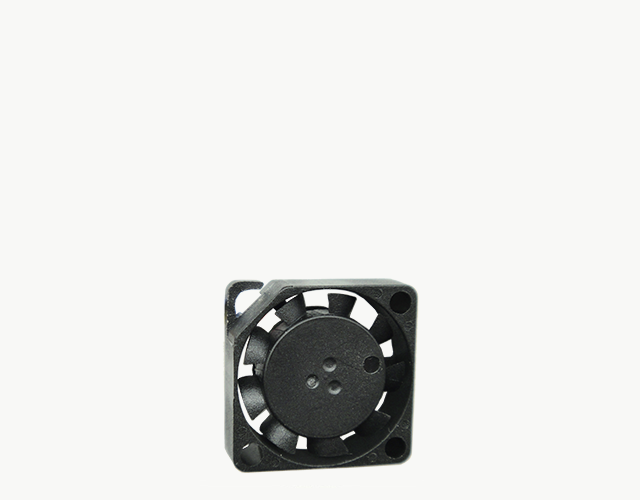

微型風扇
產品描述
Product Description
尺寸：20X20X6mm
材料：玻璃纖維增強塑料;框葉PBT UL 94V-0等級
工作溫度：CycleSeal軸承-10°C ~ +70°C
絕緣阻抗:加500VDC一分鐘， 阻抗大於10兆歐(在外框與端子之間)
絕緣耐壓:加500VAC/60Hz一分鐘，漏電流小於5mA

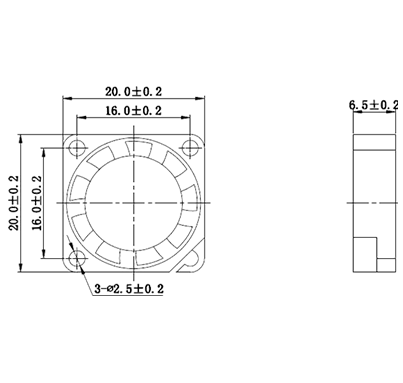

尺寸圖
Dimensions Drawing

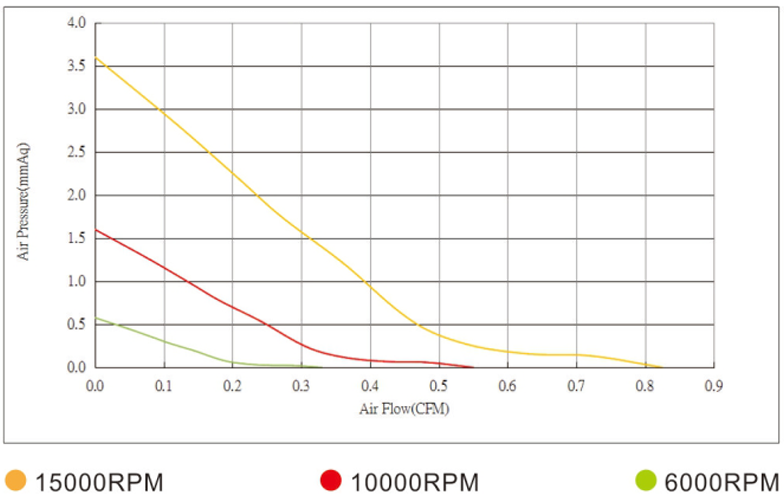

特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YDH2006C05F | C | 5 | 0.10 | 15000 | 0.82 | 3.60 | 27.75 | 3.0 |
| YDM2006C05F | C | 5 | 0.07 | 10000 | 0.55 | 1.60 | 18.94 | 3.0 |
| YDL2006C05F | C | 5 | 0.03 | 6000 | 0.33 | 0.57 | 7.85 | 3.0 |
| YDH2006C12F | C | 12 | 0.06 | 15000 | 0.82 | 3.60 | 27.75 | 3.0 |
| YDM2006C12F | C | 12 | 0.04 | 10000 | 0.55 | 1.60 | 18.94 | 3.0 |
| YDL2006C12F | C | 12 | 0.03 | 6000 | 0.33 | 0.57 | 7.85 | 3.0 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
