材料：玻璃纖維增強塑料;框葉PBT UL 94V-0等級;不鏽鋼金屬蓋板

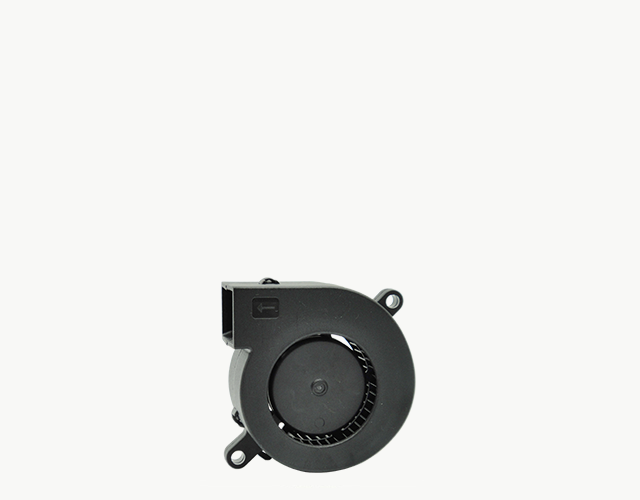

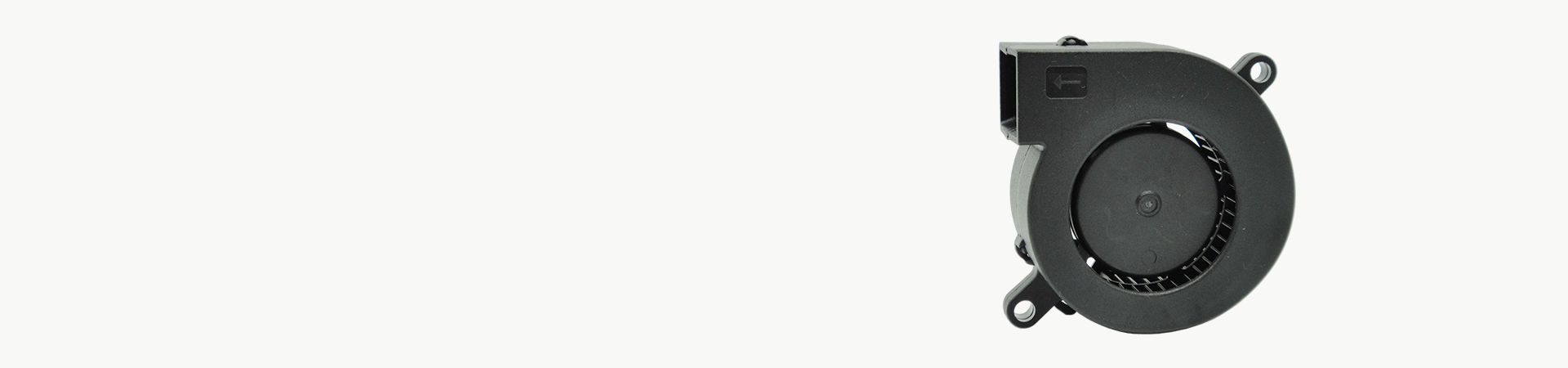

微型鼓風機
產品描述
Product Description
SIZE:60x60x25mm
CONSTRUCTION:Glass Fiber reinforced plastic; Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;Sleeve bearing -10℃ to +60℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing
特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YBM6025X05 | S or B | 5 | 0.37 | 4000 | 7.40 | 9.34 | 42.90 | 54 |
| YBL6025X05 | S or B | 5 | 0.16 | 3000 | 5.55 | 5.26 | 36.60 | 54 |
| YBH6025X12 | S or B | 12 | 0.30 | 5000 | 9.25 | 14.60 | 47.70 | 54 |
| YBM6025X12 | S or B | 12 | 0.15 | 4000 | 7.40 | 9.34 | 42.90 | 54 |
| YBL6025X12 | S or B | 12 | 0.13 | 3000 | 5.55 | 5.26 | 36.60 | 54 |
| YBH6025X24 | S or B | 24 | 0.18 | 5000 | 9.25 | 14.60 | 47.70 | 54 |
| YBM6025X24 | S or B | 24 | 0.09 | 4000 | 7.40 | 9.34 | 42.90 | 54 |
| YBL6025X24 | S or B | 24 | 0.04 | 3000 | 5.55 | 5.26 | 36.60 | 54 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
