材料：玻璃纖維增強塑料;框葉PBT UL 94V-0等級;不鏽鋼金屬蓋板

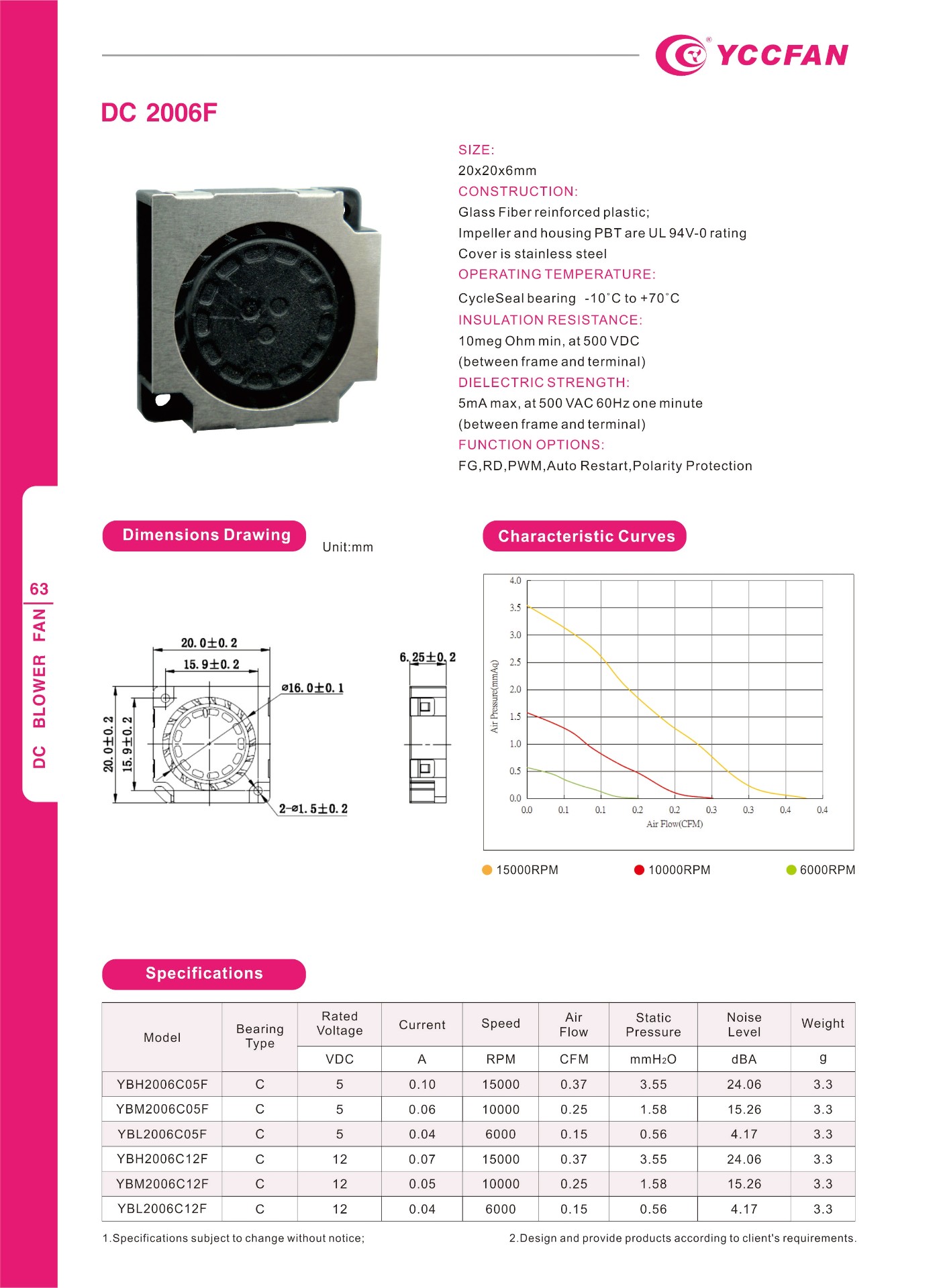

微型鼓風機
產品描述
Product Description
SIZE:20x20x6mm
CONSTRUCTION:Glass Fiber reinforced plastic; Impeller and housing PBT are UL 94V-0 rating Cover is stainless steel
OPERATING TEMPERATURE:CycleSeal bearing -10℃ to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing
特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated voltage | Current | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YBH2006CO5F | C | 5 | 0.10 | 15000 | 0.37 | 3.55 | 24.06 | 3.3 |
| YBM2006CO5F | C | 5 | 0.06 | 10000 | 0.25 | 1.58 | 15.26 | 3.3 |
| YBL2006C05F | C | 5 | 0.04 | 6000 | 0.15 | 0.56 | 4.17 | 3.3 |
| YBH2006C12F | C | 12 | 0.07 | 15000 | 0.37 | 3.55 | 24.06 | 3.3 |
| YBM2006C12F | C | 12 | 0.05 | 10000 | 0.25 | 1.58 | 15.26 | 3.3 |
| YBL2006C12F | C | 12 | 0.04 | 6o0o | 0.15 | 0.56 | 4.17 | 3.3 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
