材料:玻璃纖維增強塑科；框葉PBT UL94V-0等級

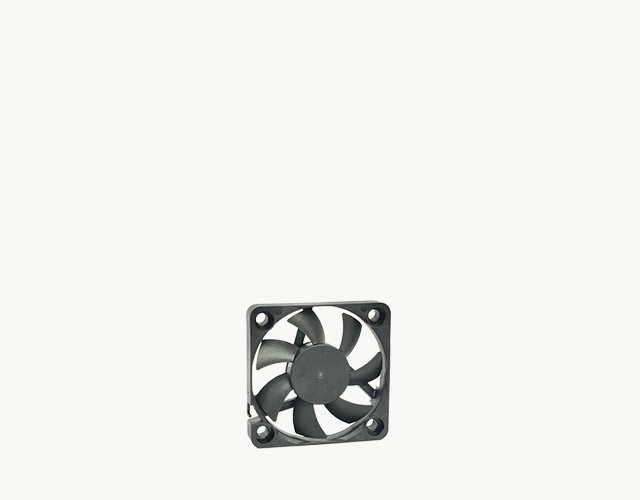

直流風扇
產品描述
Product Description
SIZE:40x40x7mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Sleeve bearing -10℃ to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing

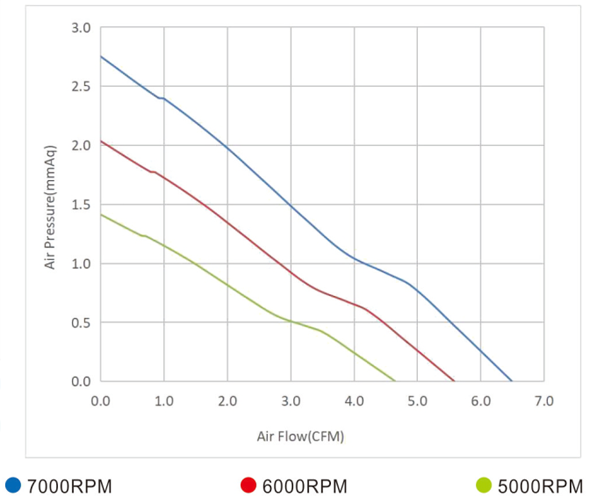

特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YDH4007CO5 | C | 5 | 0.23 | 7000 | 6.49 | 2.75 | 27.80 | 8.5 |
| YDM4007CO5 | C | 5 | 0.18 | 6000 | 5.58 | 2.04 | 24.50 | 8.5 |
| YDL4007CO5 | C | 5 | 0.10 | 5000 | 4.65 | 1.41 | 20.50 | 8.5 |
| YDH4007C12 | C | 12 | 0.11 | 7000 | 6.49 | 2.75 | 27.80 | 8.5 |
| YDM4007C12 | C | 12 | 0.08 | 6000 | 5.58 | 2.04 | 24.50 | 8.5 |
| YDL4007C12 | C | 12 | 0.06 | 5000 | 4.65 | 1.41 | 20.50 | 8.5 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
