材料:玻璃纖維增強塑科；框葉PBT UL94V-0等級
直流風扇
產品描述
Product Description
SIZE:38x38x28mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing

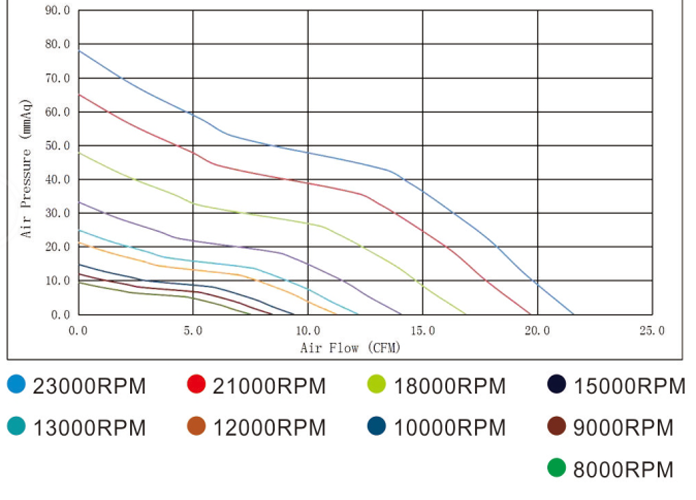

特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YDS3828B12 | B | 12 | 1.03 | 23500 | 22.05 | 81.56 | 61.40 | 44.0 |
| YDU3828B12 | B | 12 | 0.77 | 21000 | 19.70 | 62.12 | 59.00 | 44.0 |
| YDD3828B12 | B | 12 | 0.50 | 18000 | 16.89 | 47.85 | 55.60 | 44.0 |
| YDH3828B12 | B | 12 | 0.33 | 15000 | 14.07 | 33.22 | 51.70 | 44.0 |
| YDM3828B12 | B | 12 | 0.22 | 12000 | 11.26 | 21.26 | 46.80 | 44.0 |
| YDL3828B12 | B | 12 | 0.12 | 9000 | 8.44 | 11.96 | 40.60 | 44.0 |
| YDH3828B24 | B | 24 | 0.15 | 13000 | 14.07 | 33.22 | 51.70 | 44.0 |
| YDM3828B24 | B | 24 | 0.11 | 10000 | 11.26 | 21.26 | 46.80 | 44.0 |
| YDL3828B24 | B | 24 | 0.09 | 8000 | 8.44 | 11.96 | 40.60 | 44.0 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
