材料:玻璃纖維增強塑科；框葉PBT UL94V-0等級

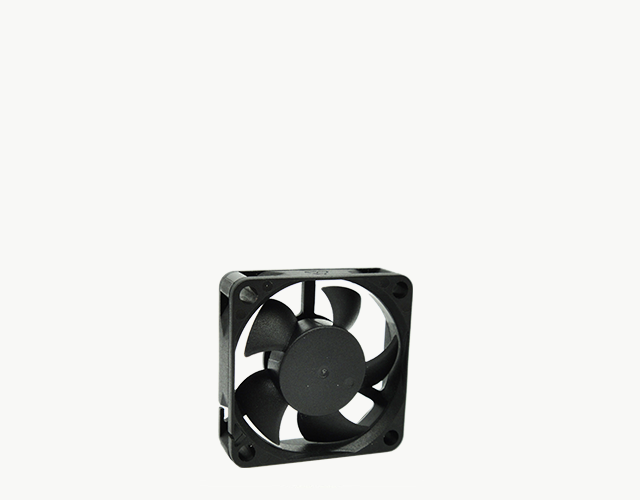

直流風扇
產品描述

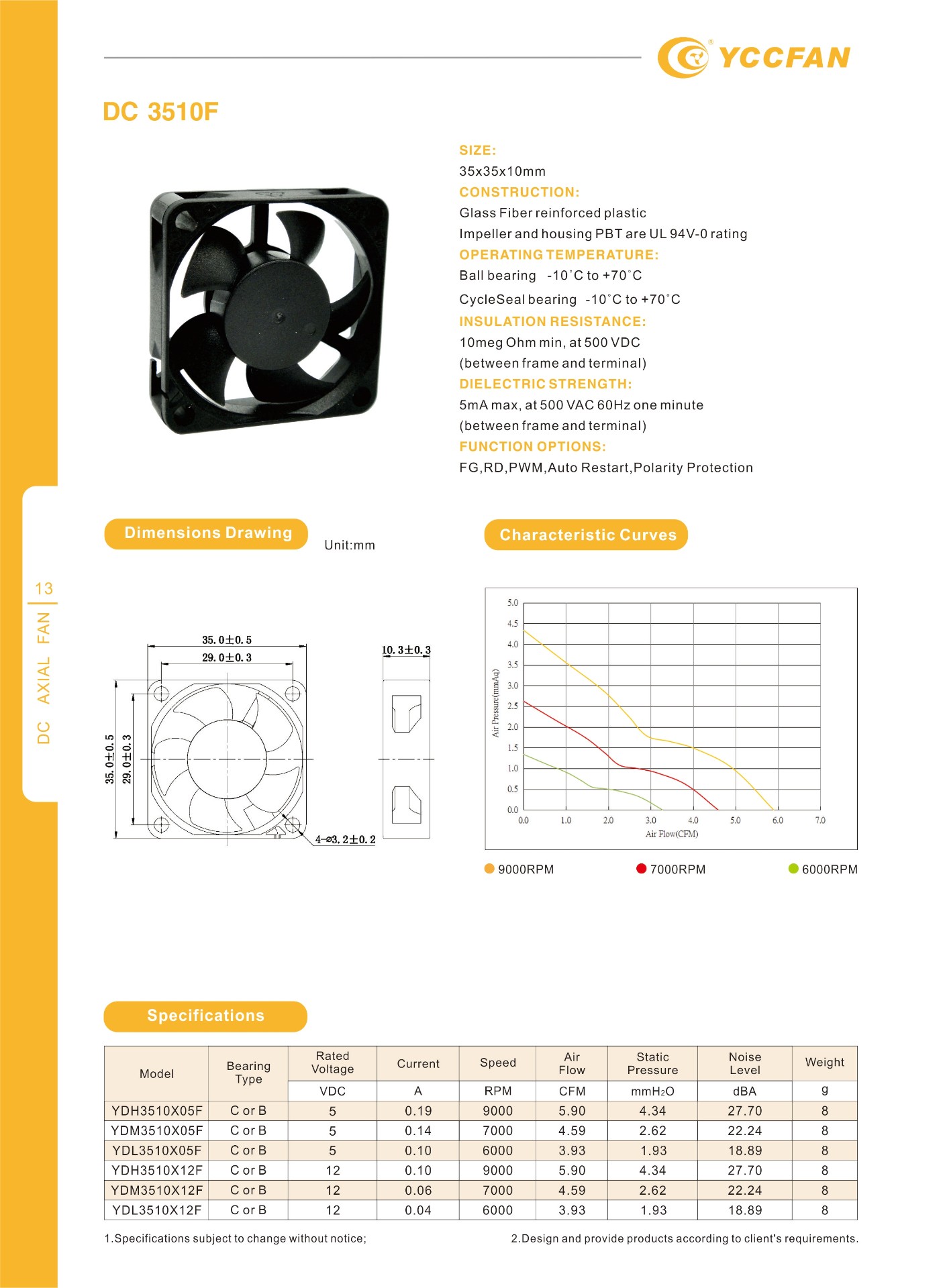

Product Description
SIZE:35x35x10mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;CycleSeal bearing -10℃ to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing
特徵曲線(xiàn )

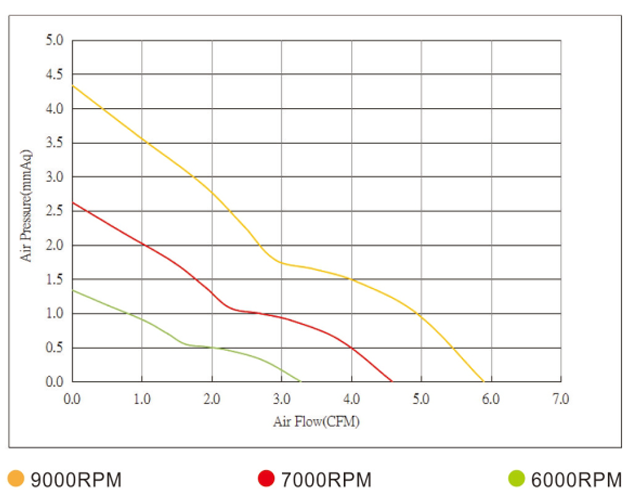

Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YDH3510X05F | C or B | 5 | 0.19 | 9000 | 5.90 | 4.34 | 27.70 | 8 |
| YDM3510X05F | C or B | 5 | 0.14 | 7000 | 4.59 | 2.62 | 22.24 | 8 |
| YDL3510X05F | C or B | 5 | 0.10 | 6000 | 3.93 | 1.93 | 18.89 | 8 |
| YDH3510X12F | C or B | 12 | 0.10 | 9000 | 5.90 | 4.34 | 27.70 | 8 |
| YDM3510X12F | C or B | 12 | 0.06 | 7000 | 4.59 | 2.62 | 22.24 | 8 |
| YDL3510X12F | C or B | 12 | 0.04 | 6000 | 3.93 | 1.93 | 18.89 | 8 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
