玻璃纖維增強塑料;框葉PBT UL94V-0等級
散熱風扇
.png "詳情頁pcbanner.png")
.png "詳情頁移動banner.png")

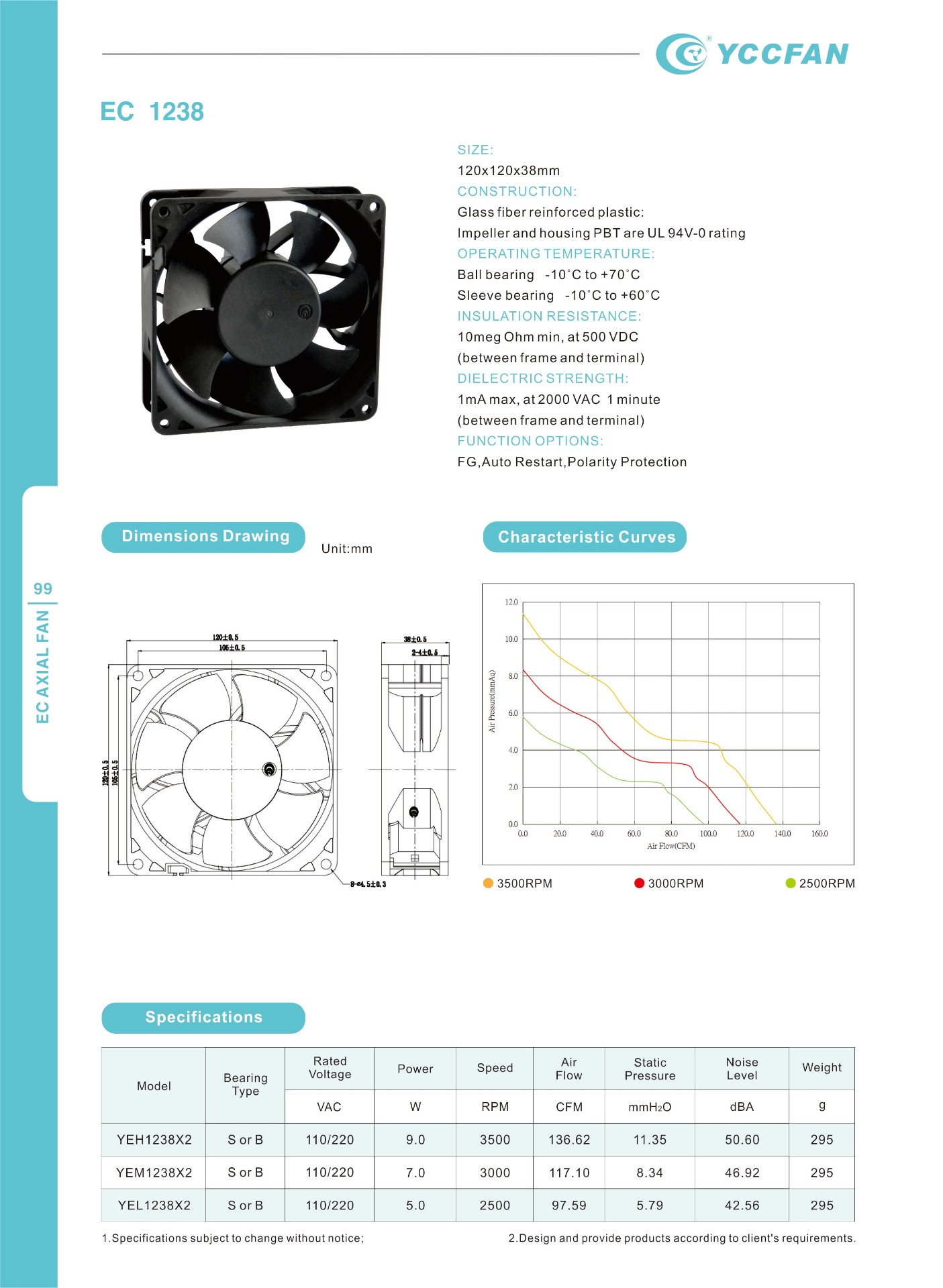

產品描述
Product Description
SIZE:120x120x38mm
CONSTRUCTION:Glass Fiber reinforced plastic; Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;Sleeve bearing -10℃ to +60℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:1mA max, at 2000 VAC 1 minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing
.jpg "左圖.jpg")
特徵曲線(xiàn )
Characteristic Curves
.jpg "右圖.jpg")
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Power | speed | Air Flow | Static Pressure | Noise Level | Weight |
| VAC | W | RPM | CFM | mmH₂O | dBA | g | ||
| YEH1238×2 | S or B | 110/220 | 9.0 | 3500 | 136.62 | 11.35 | 50.60 | 295 |
| YEM1238×2 | S or B | 110/220 | 7.0 | 3000 | 117.10 | 8.34 | 46.92 | 295 |
| YEL1238x2 | S or B | 110/220 | 5.0 | 2500 | 97.59 | 5.79 | 42.56 | 295 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
