產品描述

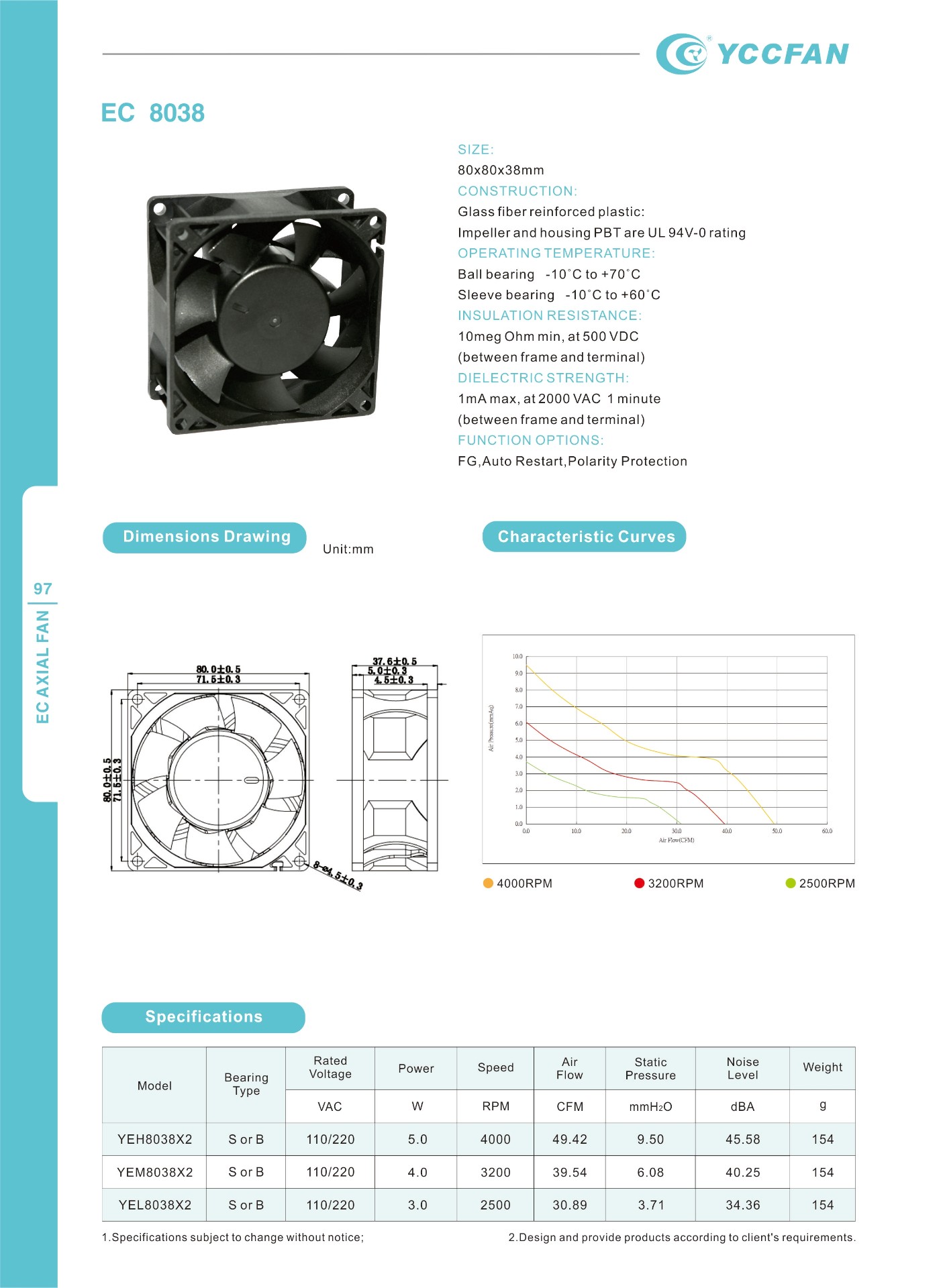

Product Description

SIZE:80x80x38mm

CONSTRUCTION:Glass Fiber reinforced plastic; Impeller and housing PBT are UL 94V-0 rating

OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;Sleeve bearing -10℃ to +60℃

INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)

DIELECTRIC STRENGTH:1mA max, at 2000 VAC 1 minute(between frame and terminal)

FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection

尺寸圖

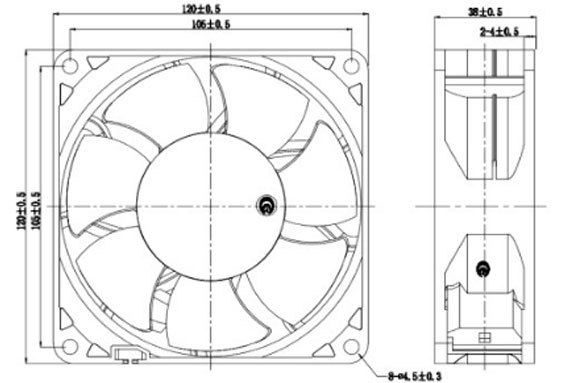

Dimensions Drawing

特徵曲線(xiàn )

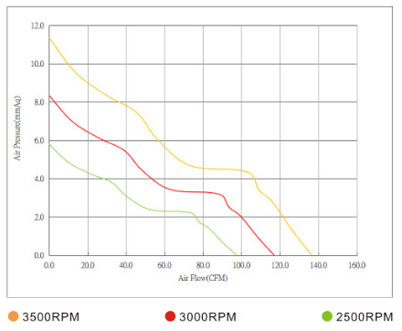

Characteristic Curves

規格參數

Specifications
ModelBearing
Type		Rated
Voltage		PowerSpeedAir
Flow		Static
Pressure		Noise
Level		Weight
VACWRPMCFMmmH₂OdBAg
YEH8038×2s orB110/2205.0400049.429.5045.58154
YEM8038×2sorB110/2204.0320039.546.0840.25154
YEL8038x2S orB110/2203.0250030.893.7134.36154

1.Specifications subject to change without notiec;

2.Design and provide products according to client’s requirements.
