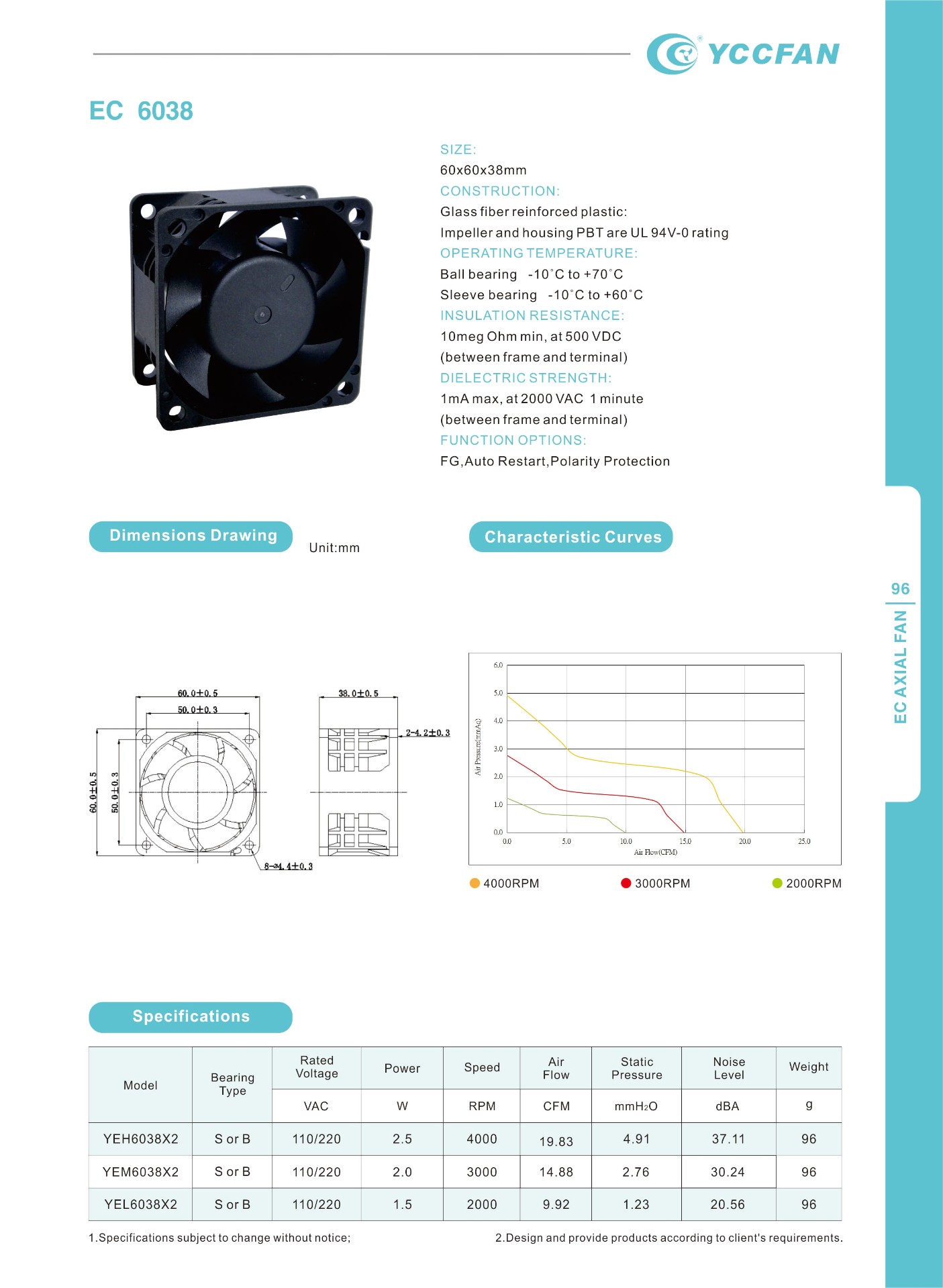

PRODUCT
玻璃纖維增強塑料;框葉PBT UL 94V-0等級
散熱風扇
產品描述
Product Description
SIZE:60x60x38mm
CONSTRUCTION:Glass Fiber reinforced plastic; Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;Sleeve bearing -10℃ to +60℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:1mA max, at 2000 VAC 1 minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing
.jpg "左圖.jpg")
特徵曲線(xiàn )
Characteristic Curves
.jpg "右圖.jpg")
規格參數
Specifications
| Model | Bearing Type | Rated Voltago | Power | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VAC | W | RPM | CFM | mmH₂O | dBA | g | ||
| YEH6038x2 | S or B | 110/220 | 2.5 | 4000 | 19.83 | 4.91 | 37.11 | 96 |
| YEM6038×2 | S or B | 110/220 | 2.0 | 3000 | 14.88 | 2.76 | 30.24 | 96 |
| YEL6038x2 | S or B | 110/220 | 1.0 | 2000 | 9.92 | 1.23 | 20.56 | 96 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
