直流風扇,微型風扇適應用PM2.5空氣檢測儀，傳感器及一些小型的數碼產品。

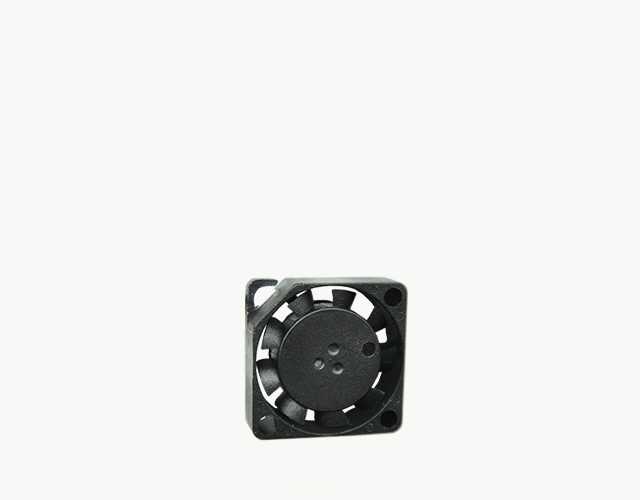

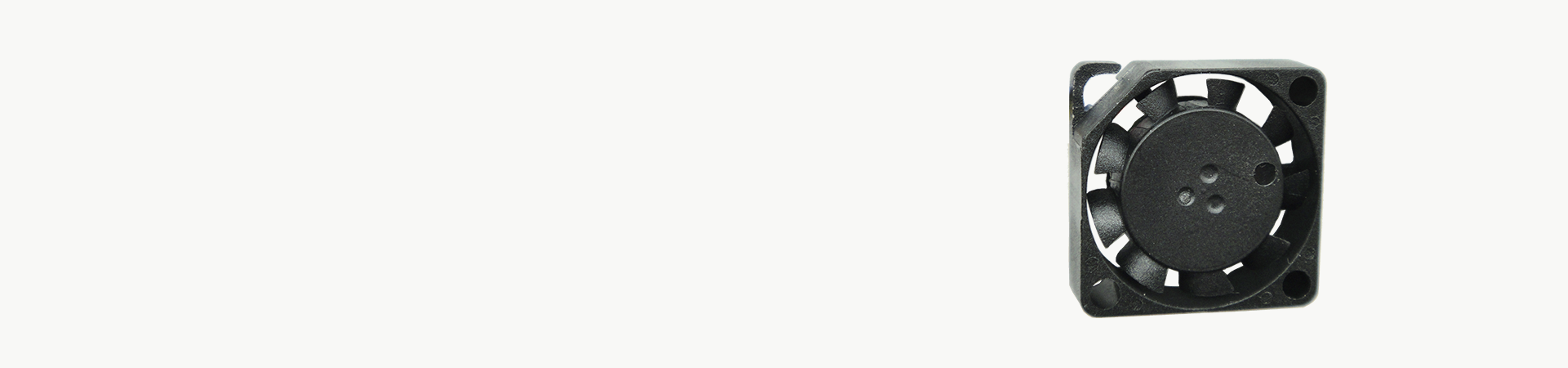

微型風扇
產品描述
Product Description
SIZE：20X20X6mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:CycleSeal bearing -10'Cto +70"C
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG, RD,PWM,Auto Restart,Polarity Protection

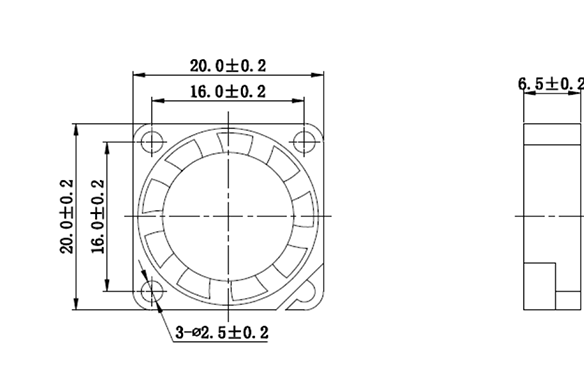

尺寸圖
Dimensions Drawing
.png "未標題-4.png")

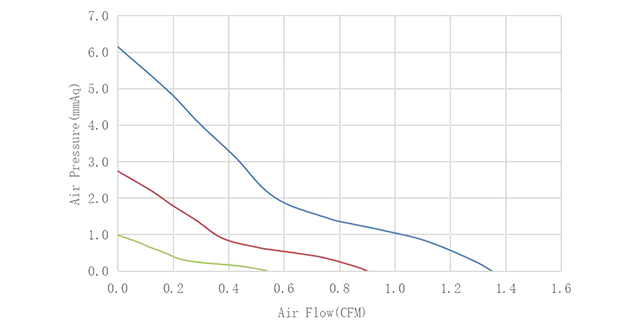

特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | current | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmHzO | dBA | g | ||
| YDH2006C05F | C | 5 | 0.10 | 15000 | 0.82 | 3.60 | 27.75 | 3.0 |
| YDM2006C05F | C | 5 | 0.07 | 10000 | 0.55 | 1.60 | 18.94 | 3.0 |
| YDL2006C05F | C | 5 | 0.03 | 6000 | 0.33 | 0.57 | 7.85 | 3.0 |
| YDH2006C12F | C | 12 | 0.06 | 15000 | 0.82 | 3.60 | 27.75 | 3.0 |
| YDM2006C12F | C | 12 | 0.04 | 10000 | 0.55 | 1.60 | 18.94 | 3.0 |
| YDL2006C12F | C | 12 | 0.03 | 6000 | 0.33 | 0.57 | 7.85 | 3.0 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
