PRODUCT
玻璃纖維增強塑料;框葉PBT UL 94V-0等級
散熱風扇
產品描述
Product Description
SIZE:80x80x25mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;CycleSeal bearing -10℃ to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing
特徵曲線(xiàn )

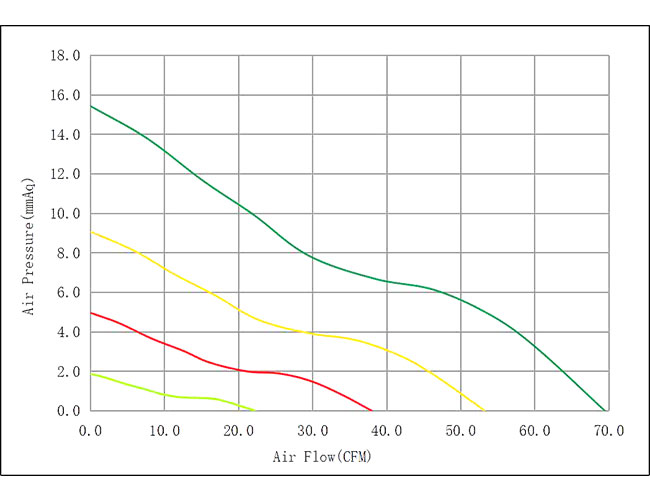

Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YDD8025X12F | C or B | 12 | 0.57 | 6000 | 69.47 | 15.43 | 48.60 | 91 |
| YDH8025X12F | C or B | 12 | 0.32 | 4600 | 53.26 | 9.07 | 42.76 | 91 |
| YDM8025X12F | C or B | 12 | 0.16 | 3300 | 37.99 | 4.96 | 35.01 | 91 |
| YDL8025X12F | C or B | 12 | 0.09 | 2000 | 22.23 | 1.87 | 22.40 | 91 |
| YDD8025X24F | C or B | 24 | 0.36 | 6000 | 69.47 | 15.43 | 48.60 | 91 |
| YDH8025X24F | C or B | 24 | 0.22 | 4600 | 53.26 | 9.07 | 42.76 | 91 |
| YDM8025X24F | C or B | 24 | 0.13 | 3300 | 37.99 | 4.96 | 35.01 | 91 |
| YDL8025X24F | C or B | 24 | 0.08 | 2000 | 22.23 | 1.87 | 22.40 | 91 |
| YDD8025X48F | C or B | 48 | 0.21 | 6000 | 69.47 | 15.43 | 48.60 | 91 |
| YDH8025X48F | C or B | 48 | 0.14 | 4600 | 53.26 | 9.07 | 42.76 | 91 |
| YDM8025X48F | C or B | 48 | 0.09 | 3300 | 37.99 | 4.96 | 35.01 | 91 |
| YDL8025X48F | C or B | 48 | 0.06 | 2000 | 22.23 | 1.87 | 22.40 | 91 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
