PRODUCT
玻璃纖維增強塑料;框葉PBT UL 94V-0等級

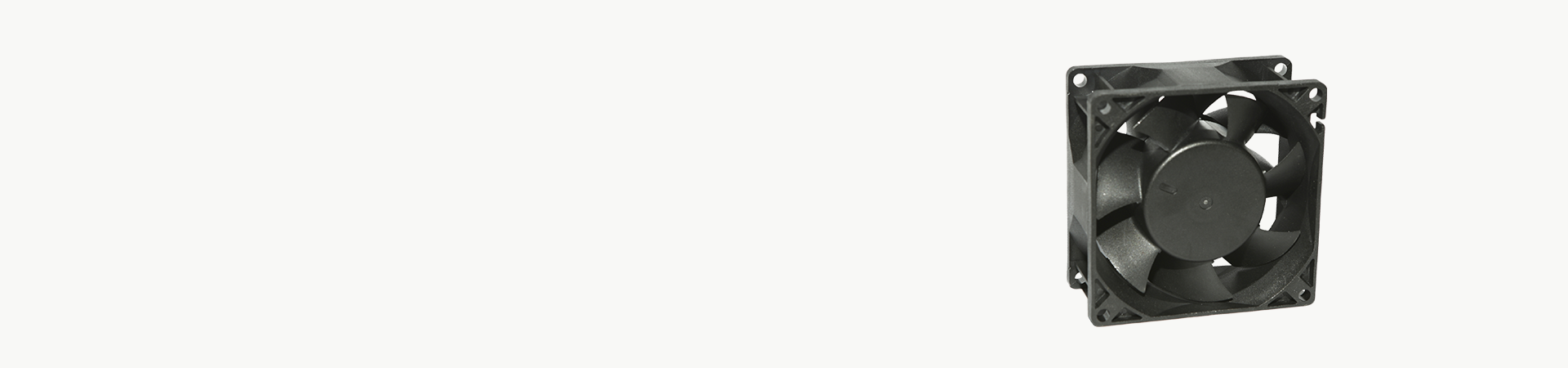

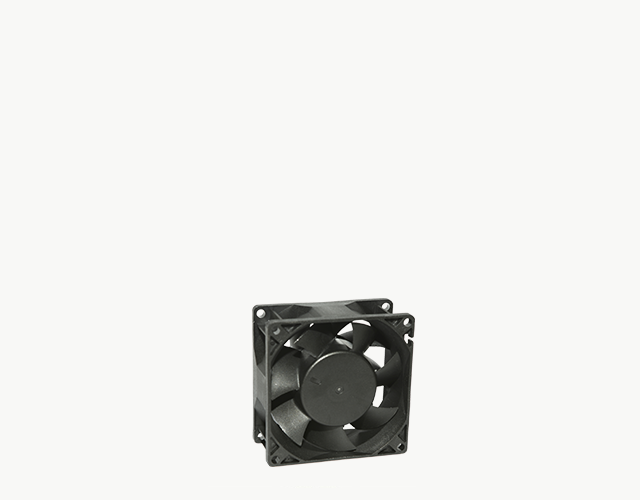

散熱風扇
產品描述
Product Description
SIZE:80x80x38mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;Sleeve bearing -10℃ to +60℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing

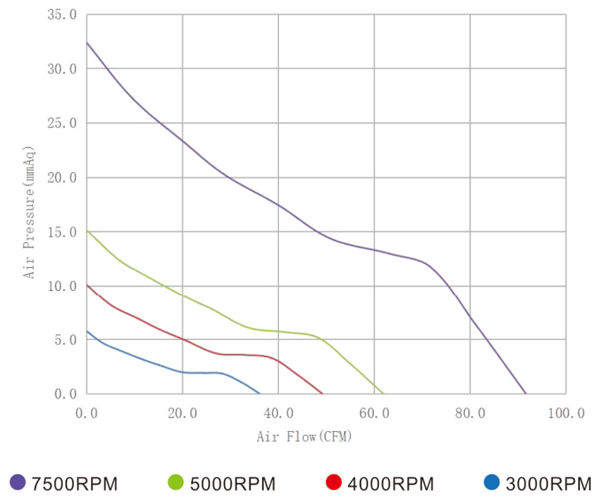

特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YDD8038x12 | S or B | 12 | 1.60 | 7500 | 92.66 | 33.39 | 58.50 | 170 |
| YDH8038×12 | S or B | 12 | 0.50 | 5000 | 61.77 | 14.84 | 49.80 | 170 |
| YDM8038x12 | S or B | 12 | 0.25 | 4000 | 49.42 | 9.50 | 44.95 | 170 |
| YDL8038X12 | S or B | 12 | 0.19 | 3000 | 37.06 | 5.34 | 38.71 | 170 |
| YDD8038x24 | S or B | 24 | 0.72 | 7500 | 92.66 | 33.39 | 58.50 | 170 |
| YDH8038x24 | S or B | 24 | 0.26 | 5000 | 61.77 | 14.84 | 49.80 | 170 |
| YDM8038x24 | S or B | 24 | 0.14 | 4000 | 49.42 | 9.50 | 44.95 | 170 |
| YoL8038x24 | S or B | 24 | 0.10 | 3000 | 37.06 | 5.34 | 38.71 | 170 |
| YoD8038x48 | S or B | 48 | 0.36 | 7500 | 92.66 | 33.39 | 58.50 | 170 |
| YDHB038X48 | S or B | 48 | 0.13 | 5000 | 61.77 | 14.84 | 49.80 | 170 |
| YDM8038x48 | S or B | 48 | 0.09 | 4000 | 49.42 | 9.50 | 44.95 | 170 |
| YoL8038x48 | S or B | 48 | 0.07 | 3000 | 37.06 | 5.34 | 38.71 | 170 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
