玻璃纖維增強塑料;框葉PBT UL 94V-0等級
散熱風扇
產品描述
Product Description
SIZE:90x90x25mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;CycleSeal bearing -10℃ to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing

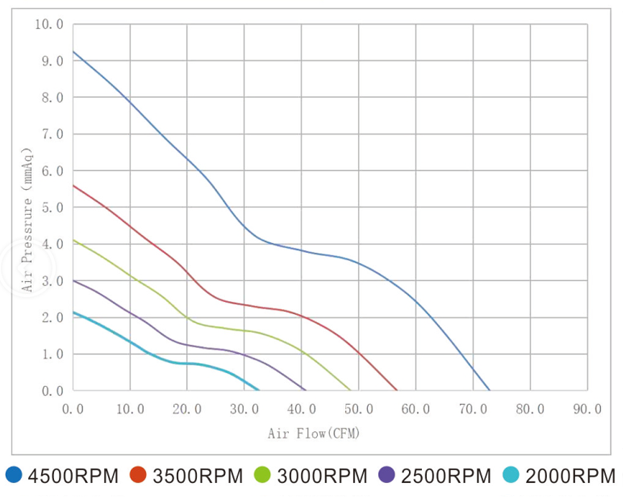

特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YDU9225X12 | C or B | 12 | 0.41 | 4500 | 72.95 | 9.25 | 43.04 | 90 |
| YDD9225X12 | C or B | 12 | 0.23 | 3500 | 56.74 | 5.60 | 37.58 | 90 |
| YDH9225X12 | C or B | 12 | 0.20 | 3000 | 48.63 | 4.11 | 34.24 | 90 |
| YDM9225X12 | C or B | 12 | 0.10 | 2500 | 40.79 | 3.01 | 29.50 | 90 |
| YDL9225X12 | C or B | 12 | 0.06 | 2000 | 32.55 | 2.14 | 23.70 | 90 |
| YDU9225X24 | C or B | 24 | 0.21 | 4500 | 72.95 | 9.25 | 43.04 | 90 |
| YDD9225X24 | C or B | 24 | 0.12 | 3500 | 56.74 | 5.60 | 37.58 | 90 |
| YDH9225X24 | C or B | 24 | 0.10 | 3000 | 48.63 | 4.11 | 34.24 | 90 |
| YDM9225X24 | C or B | 24 | 0.05 | 2500 | 40.79 | 3.01 | 29.50 | 90 |
| YDL9225X24 | C or B | 24 | 0.04 | 2000 | 32.55 | 2.14 | 23.70 | 90 |
| YDU9225X48 | C or B | 48 | 0.10 | 4500 | 72.95 | 9.25 | 43.04 | 90 |
| YDD9225X48 | C or B | 48 | 0.06 | 3500 | 56.74 | 5.60 | 37.58 | 90 |
| YDH9225X48 | C or B | 48 | 0.05 | 3000 | 48.63 | 4.11 | 34.24 | 90 |
| YDM9225X48 | C or B | 48 | 0.04 | 2500 | 40.79 | 3.01 | 29.50 | 90 |
| YDL9225X48 | C or B | 48 | 0.03 | 2000 | 32.55 | 2.14 | 23.70 | 90 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
