玻璃纖維增強塑料;框葉PBT UL 94V-0等級

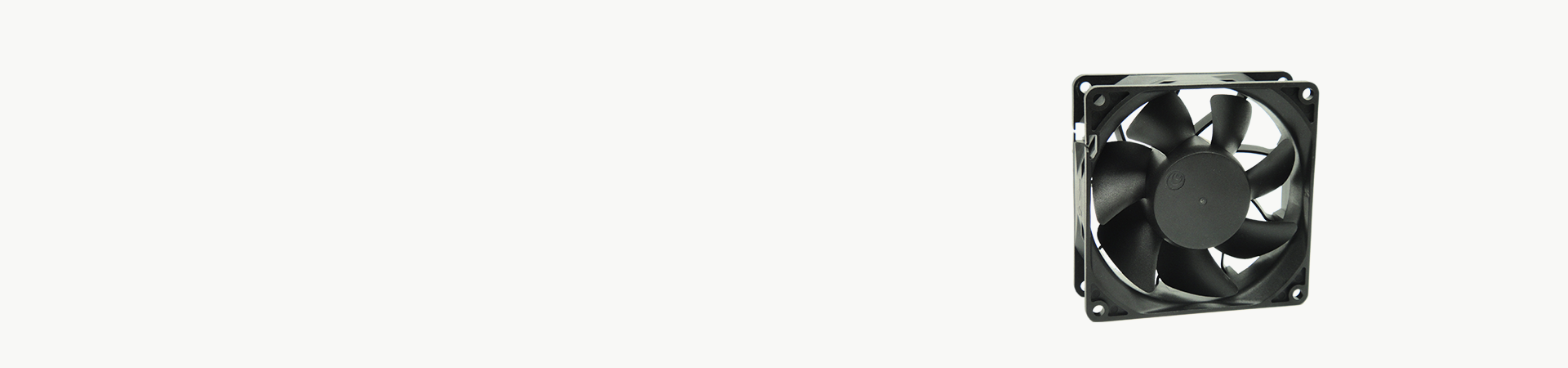

散熱風扇

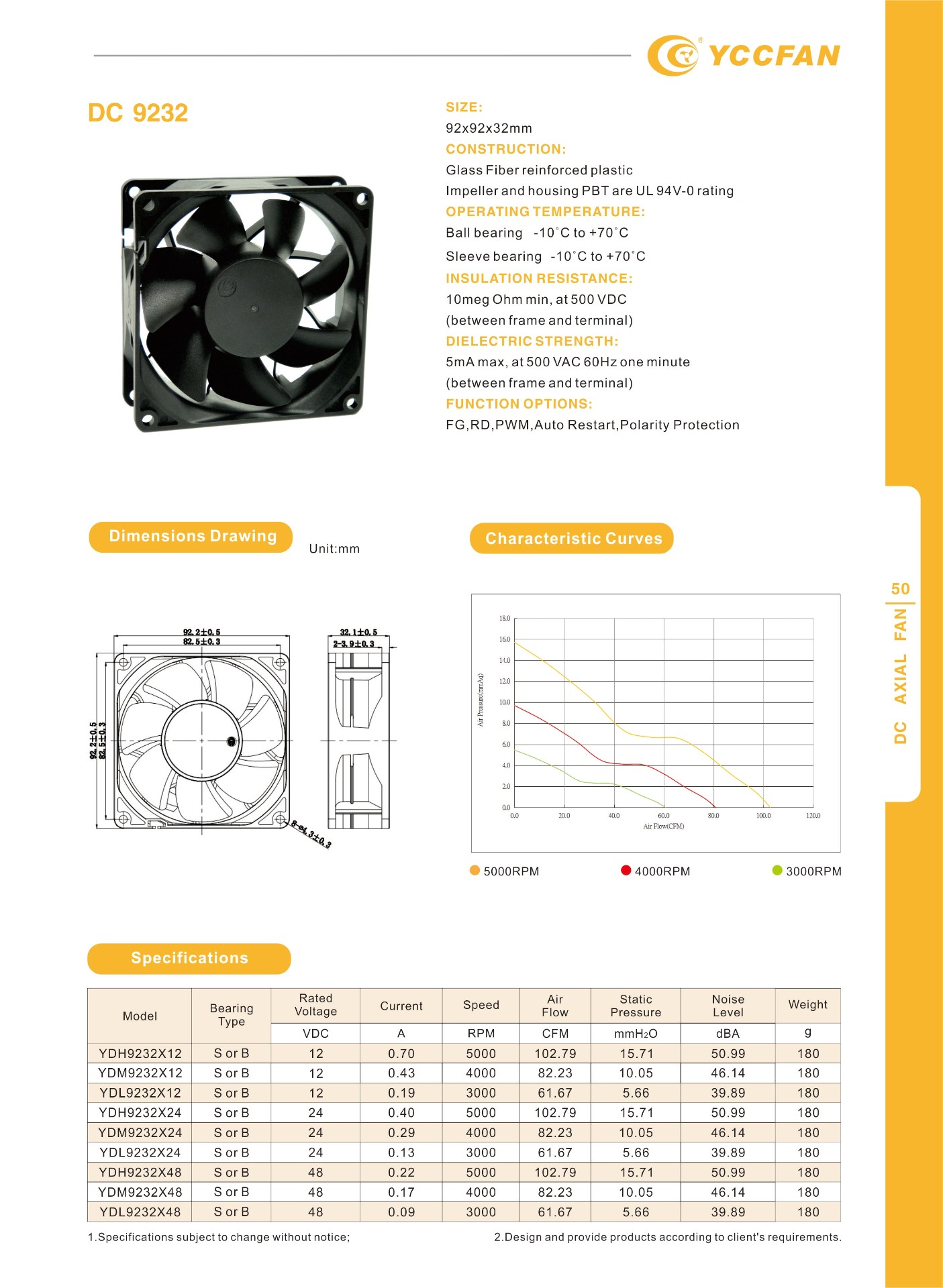

產品描述
Product Description
SIZE:92x92x32mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;Sleeve bearing -10℃ to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing

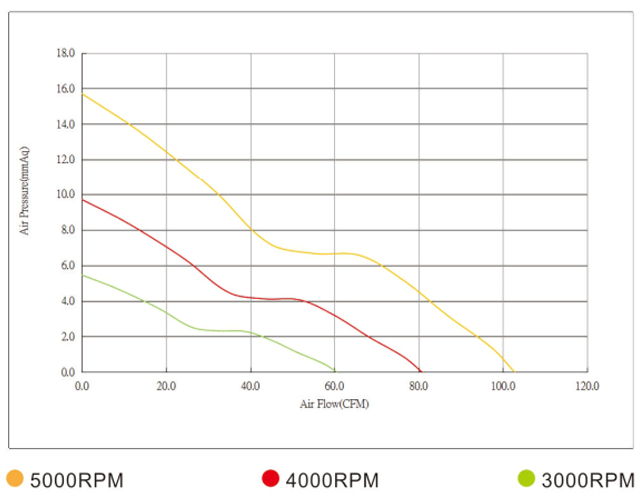

特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YDH9232X12 | S or B | 12 | 0.70 | 5000 | 102.79 | 15.71 | 50.99 | 180 |
| YDM9232X12 | S or B | 12 | 0.43 | 4000 | 82.23 | 10.05 | 46.14 | 180 |
| YDL9232X12 | S or B | 12 | 0.19 | 3000 | 61.67 | 5.66 | 39.89 | 180 |
| YDH9232X24 | S or B | 24 | 0.4 | 5000 | 102.79 | 15.71 | 50.99 | 180 |
| YDM9232X24 | S or B | 24 | 0.29 | 4000 | 82.23 | 10.05 | 46.14 | 180 |
| YDL9232X24 | S or B | 24 | 0.13 | 3000 | 61.67 | 5.66 | 39.89 | 180 |
| YDH9232X48 | S or B | 48 | 0.22 | 5000 | 102.79 | 15.71 | 50.99 | 180 |
| YDM9232X48 | S or B | 48 | 0.17 | 4000 | 82.23 | 10.05 | 46.14 | 180 |
| YDL9232X48 | S or B | 48 | 0.09 | 3000 | 61.67 | 5.66 | 39.89 | 180 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
