材料:玻璃纖維增強塑科；框葉PBT UL94V-0等級

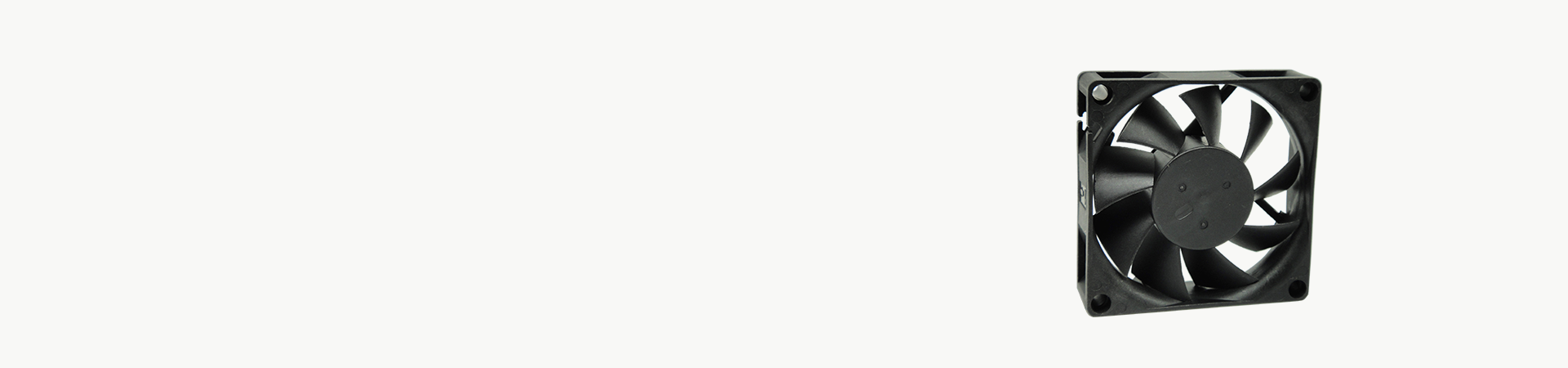

直流散熱風扇
產品描述
Product Description
SIZE:70x70x20mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃to +70℃;Sleeve bearing -10℃ to +60℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing

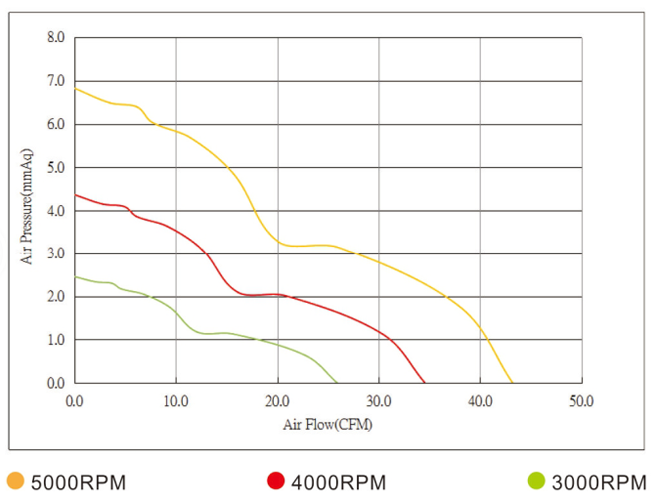

特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated voltage | Current | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YDH7020X12 | S or B | 12 | 0.38 | 5000 | 43.20 | 6.83 | 41.50 | 58 |
| YDM7020X12 | S or B | 12 | 0.22 | 4000 | 34.56 | 4.37 | 36.60 | 58 |
| YDL7020X12 | S or B | 12 | 0.11 | 3000 | 25.92 | 2.46 | 30.40 | 58 |
| YDH7020X24 | S or B | 24 | 0.19 | 5000 | 43.20 | 6.83 | 41.50 | 58 |
| YDM7020X24 | S or B | 24 | 0.11 | 4000 | 34.56 | 4.37 | 36.60 | 58 |
| YDL7020X24 | S or B | 24 | 0.06 | 3000 | 25.92 | 2.46 | 30.40 | 58 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
