PRODUCT
玻璃纖維增強塑料;框葉PBT UL 94V-0等級
散熱風扇

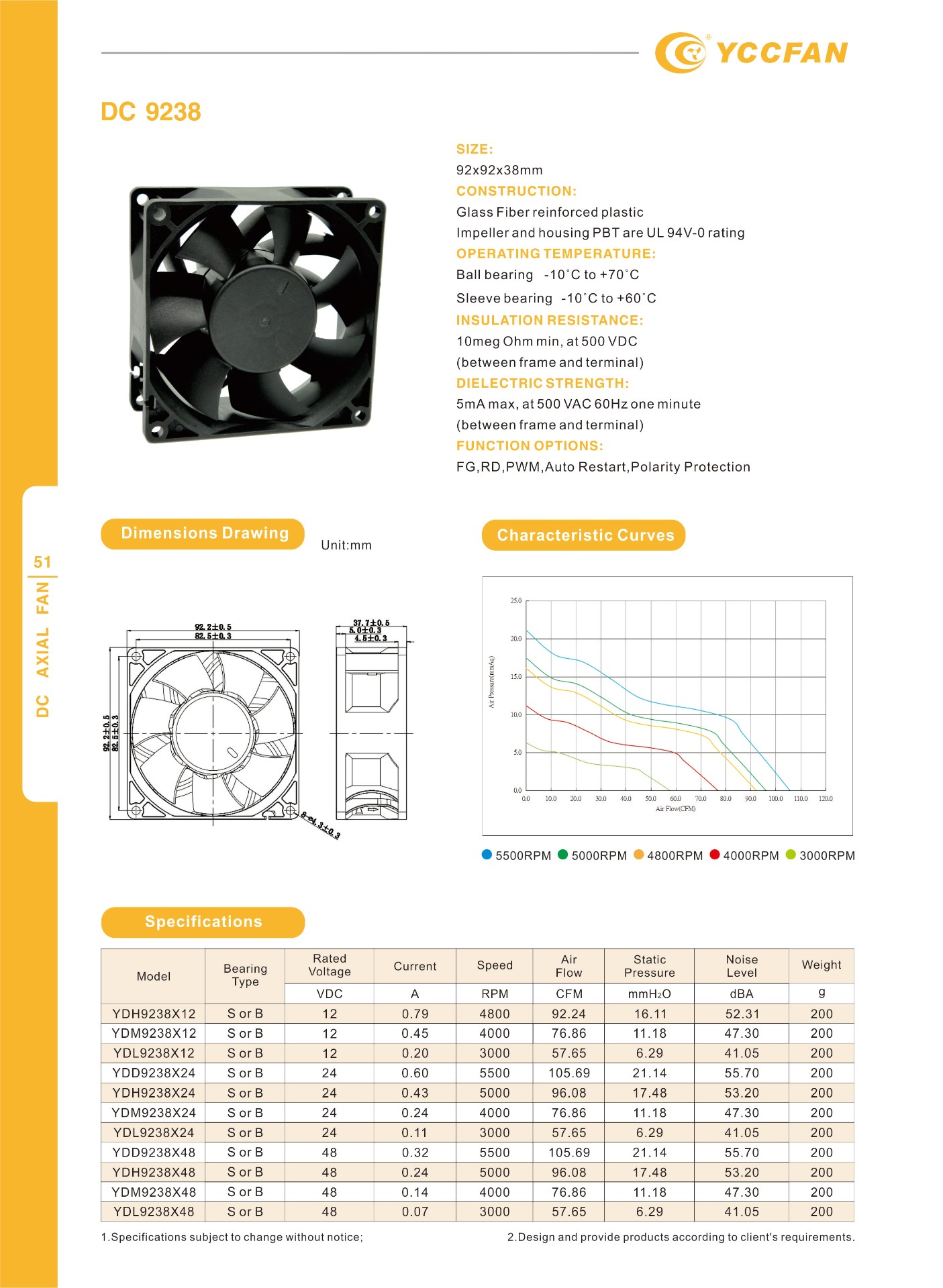

產品描述
Product Description
SIZE:92x92x38mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;Sleeve bearing -10℃ to +60℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing

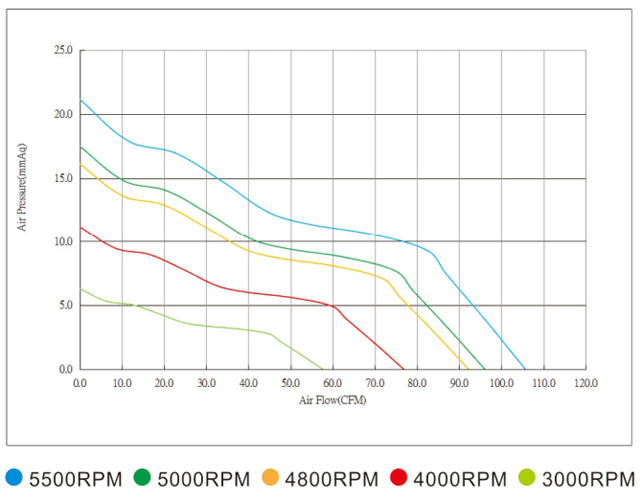

特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YDH9238X12 | S or B | 12 | 0.79 | 4800 | 92.24 | 16.11 | 52.31 | 200 |
| YDM9238X12 | S or B | 12 | 0.45 | 4000 | 76.86 | 11.18 | 47.3 | 200 |
| YDL9238X12 | S or B | 12 | 0.20 | 3000 | 57.65 | 6.29 | 41.05 | 200 |
| YDD9238X24 | S or B | 24 | 0.60 | 5500 | 105.69 | 21.14 | 55.7 | 200 |
| YDH9238X24 | S or B | 24 | 0.43 | 5000 | 96.08 | 17.48 | 53.2 | 200 |
| YDM9238X24 | S or B | 24 | 0.24 | 4000 | 76.86 | 11.18 | 47.3 | 200 |
| YDL9238×24 | S or B | 24 | 0.11 | 3000 | 57.65 | 6.29 | 41.05 | 200 |
| YDD9238X48 | S or B | 48 | 0.32 | 5500 | 105.69 | 21.14 | 55.7 | 200 |
| YDH9238X48 | S or B | 48 | 0.24 | 5000 | 96.08 | 17.48 | 53.2 | 200 |
| YDM9238X48 | S or B | 48 | 0.14 | 4000 | 76.86 | 11.18 | 47.3 | 200 |
| YDL9238X48 | S or B | 48 | 0.07 | 3000 | 57.65 | 6.29 | 41.05 | 200 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
