PRODUCT
玻璃纖維增強塑料;框葉PBT UL 94V-0等級
散熱風扇
產品描述
Product Description
SIZE:80x80x25mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;Sleeve bearing -10℃ to +60℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing

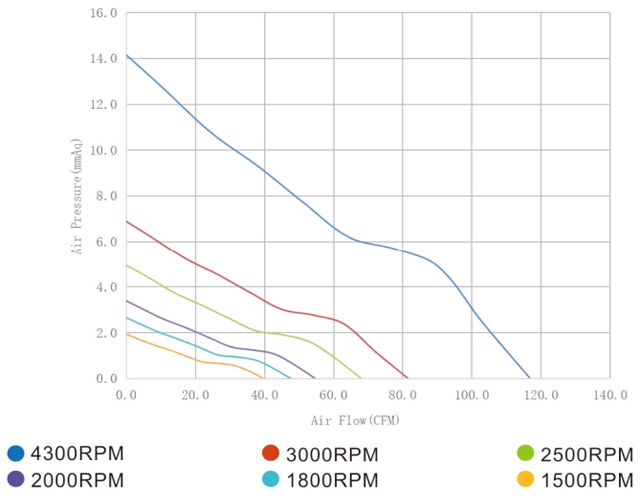

特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Static ressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YDH1225X05J | S or B | 5 | 0.27 | 2000 | 54.67 | 3.39 | 32.15 | 178 |
| YDM1225X05J | S or B | 5 | 0.20 | 1800 | 47.64 | 2.65 | 29.05 | 178 |
| YDL1225X05J | S or B | 5 | 0.12 | 1500 | 39.69 | 1.93 | 25.47 | 178 |
| YDH1225X12J | S or B | 12 | 0.22 | 2500 | 68.02 | 4.94 | 38.11 | 178 |
| YDM1225X12J | S or B | 12 | 0.12 | 2000 | 54.67 | 3.39 | 32.15 | 178 |
| YDL1225X12J | S or B | 12 | 0.05 | 1500 | 39.69 | 1.93 | 25.47 | 178 |
| YDH1225X18J | S or B | 18 | 0.15 | 2500 | 68.02 | 4.94 | 38.11 | 178 |
| YDM1225X18J | S or B | 18 | 0.08 | 2000 | 54.67 | 3.39 | 32.15 | 178 |
| YDL1225X18J | S or B | 18 | 0.05 | 1500 | 39.69 | 1.93 | 25.47 | 178 |
| YDH1225X24J | S or B | 24 | 0.73 | 4300 | 116.86 | 14.15 | 50.60 | 178 |
| YDM1225X24J | S or B | 24 | 0.30 | 3000 | 81.53 | 6.89 | 42.70 | 178 |
| YDL1225X24J | S or B | 24 | 0.13 | 2000 | 54.67 | 3.39 | 32.15 | 178 |
| YDH1225X48J | S or B | 48 | 0.39 | 4300 | 116.86 | 14.15 | 50.60 | 178 |
| YDM1225X48J | S or B | 48 | 0.18 | 3000 | 81.53 | 6.89 | 42.70 | 178 |
| YDL1225X48J | S or B | 48 | 0.09 | 2000 | 54.67 | 3.39 | 32.15 | 178 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
