PRODUCT
玻璃纖維增強塑料;框葉PBT UL 94V-0等級

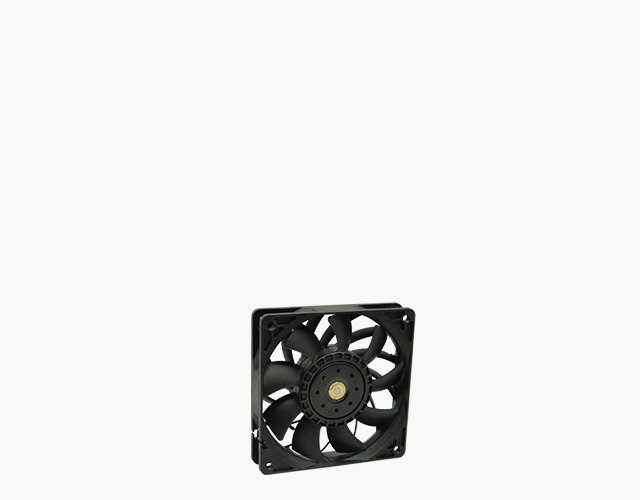

散熱風扇
產品描述
Product Description
SIZE:120x120x25mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing
特徵曲線(xiàn )

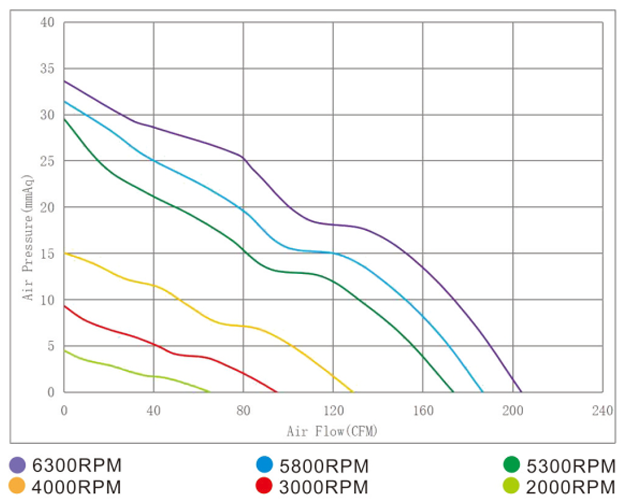

Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YDS1225B12F | B | 12 | 3.10 | 6300 | 201.44 | 29.48 | 61.50 | 245 |
| YDU1225B12F | B | 12 | 2.60 | 5800 | 185.45 | 24.99 | 59.70 | 245 |
| YDD1225B12F | B | 12 | 1.82 | 5300 | 169.47 | 20.86 | 57.75 | 245 |
| YDH1225B12F | B | 12 | 0.80 | 4000 | 127.90 | 11.88 | 51.64 | 245 |
| YDM1225B12F | B | 12 | 0.36 | 3000 | 95.92 | 6.68 | 45.39 | 245 |
| YDL1225B12F | B | 12 | 0.22 | 2000 | 63.95 | 2.97 | 36.58 | 245 |
| YDS1225B24F | B | 24 | 1.22 | 6300 | 201.44 | 29.48 | 61.50 | 245 |
| YDU1225B24F | B | 24 | 0.95 | 5800 | 185.45 | 24.99 | 59.70 | 245 |
| YDD1225B24F | B | 24 | 0.80 | 5300 | 169.47 | 20.86 | 57.75 | 245 |
| YDH1225B24F | B | 24 | 0.37 | 4000 | 127.90 | 11.88 | 51.64 | 245 |
| YDM1225B24F | B | 24 | 0.22 | 3000 | 95.92 | 6.68 | 45.39 | 245 |
| YDL1225B24F | B | 24 | 0.12 | 2000 | 63.95 | 2.97 | 36.58 | 245 |
| YDS1225B48F | B | 48 | 0.62 | 6300 | 201.44 | 29.48 | 61.50 | 245 |
| YDU1225B48F | B | 48 | 0.56 | 5800 | 185.45 | 24.99 | 59.70 | 245 |
| YDD1225B48F | B | 48 | 0.42 | 5300 | 169.47 | 20.86 | 57.75 | 245 |
| YDH1225B48F | B | 48 | 0.21 | 4000 | 127.90 | 11.88 | 51.64 | 245 |
| YDM1225B48F | B | 48 | 0.13 | 3000 | 95.92 | 6.68 | 45.39 | 245 |
| YDL1225B48F | B | 48 | 0.09 | 2000 | 63.95 | 2.97 | 36.58 | 245 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
