玻璃纖維增強塑料;框葉PBT UL 94V-0等級

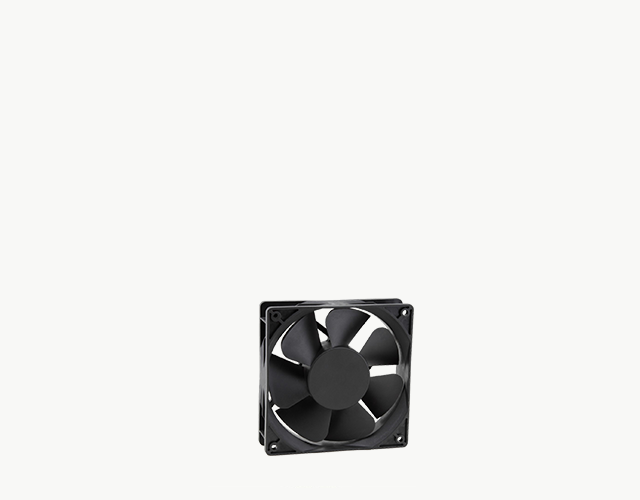

散熱風扇
產品描述
Product Description
SIZE:120x120x32mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10°Cto +70°C;Sleeve bearing -10°C to +60°C
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing

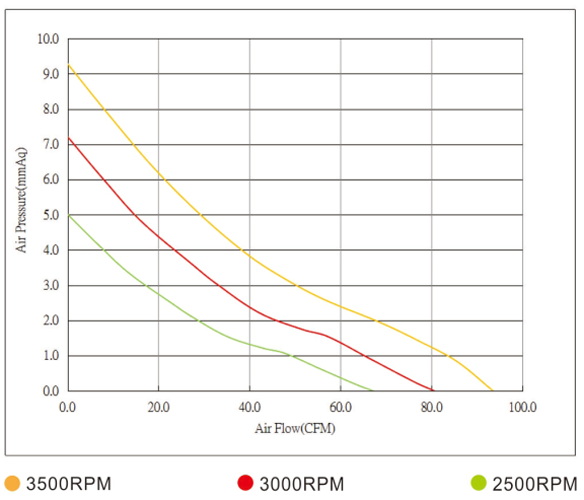

特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YDH1232X12 | S or B | 12 | 0.42 | 3500 | 93.52 | 9.28 | 48.59 | 208 |
| YDM1232X12 | S or B | 12 | 0.26 | 3000 | 80.59 | 7.21 | 44.87 | 208 |
| YDL1232X12 | S or B | 12 | 0.18 | 2500 | 67.16 | 5.01 | 39.83 | 208 |
| YDH1232X24 | S or B | 24 | 0.18 | 3500 | 93.52 | 9.28 | 48.59 | 208 |
| YDM1232X24 | S or B | 24 | 0.16 | 3000 | 80.59 | 7.21 | 44.87 | 208 |
| YDL1232X24 | S or B | 24 | 0.15 | 2500 | 67.16 | 5.01 | 39.83 | 208 |
| YDH1232X48 | S or B | 48 | 0.11 | 3500 | 93.52 | 9.28 | 48.59 | 208 |
| YDM1232X48 | S or B | 48 | 0.09 | 3000 | 80.59 | 7.21 | 44.87 | 208 |
| YoL1232X48 | S or B | 48 | 0.08 | 2500 | 67.16 | 5.01 | 39.83 | 208 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
