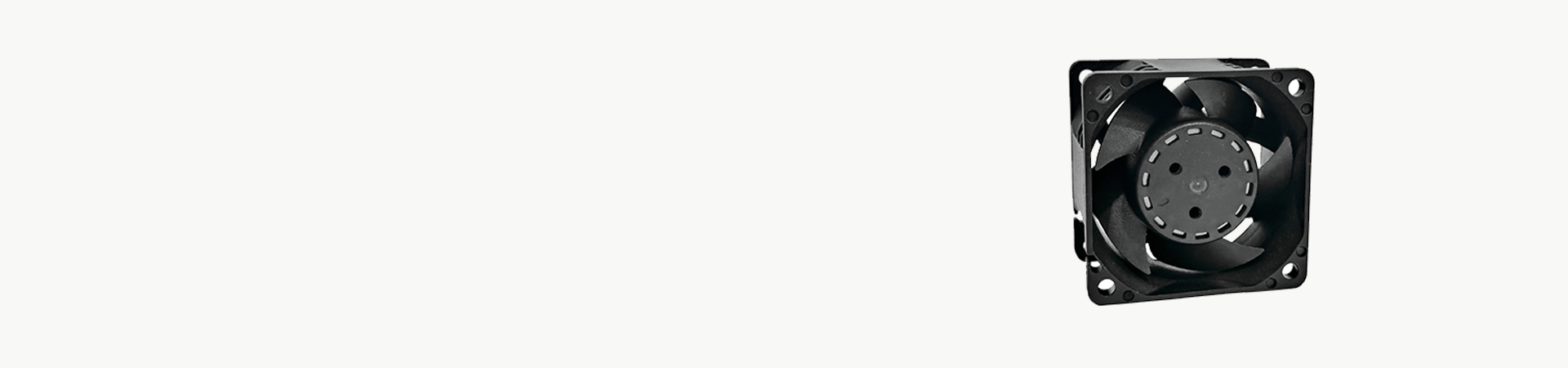

PRODUCT
材料:玻璃纖維增強塑科；框葉PBT UL94V-0等級
直流散熱風扇
產品描述
Product Description
SIZE:60x60x38mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing

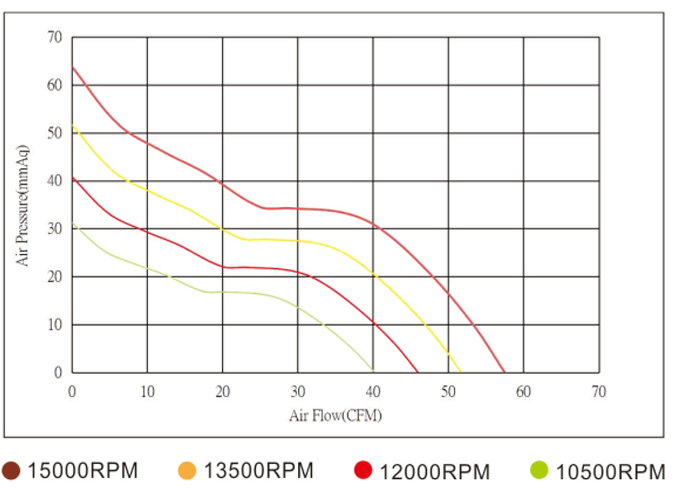

特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YDU6038B12F | B | 12 | 1.50 | 15000 | 57.51 | 63.76 | 63.10 | 105 |
| YDH6038B12F | B | 12 | 1.20 | 13500 | 51.76 | 51.65 | 60.80 | 105 |
| YDM6038B12F | B | 12 | 0.88 | 12000 | 46.01 | 40.81 | 58.30 | 105 |
| YDL6038B12F | B | 12 | 0.65 | 10500 | 40.26 | 31.24 | 55.40 | 105 |
| YDU6038B24F | B | 24 | 0.75 | 15000 | 57.51 | 63.76 | 63.10 | 105 |
| YDH6038B24F | B | 24 | 0.58 | 13500 | 51.76 | 51.65 | 60.80 | 105 |
| YDM6038B24F | B | 24 | 0.45 | 12000 | 46.01 | 40.81 | 58.30 | 105 |
| YDL6038B24F | B | 24 | 0.35 | 10500 | 40.26 | 31.24 | 55.40 | 105 |
| YDU6038B48F | B | 48 | 0.41 | 15000 | 57.51 | 63.76 | 63.10 | 105 |
| YDH6038B48F | B | 48 | 0.32 | 13500 | 51.76 | 51.65 | 60.80 | 105 |
| YDM6038B48F | B | 48 | 0.25 | 12000 | 46.01 | 40.81 | 58.30 | 105 |
| YDL6038B48F | B | 48 | 0.21 | 10500 | 40.26 | 31.24 | 55.40 | 105 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
