玻璃纖維增強塑料;框葉PBT UL 94V-0等級

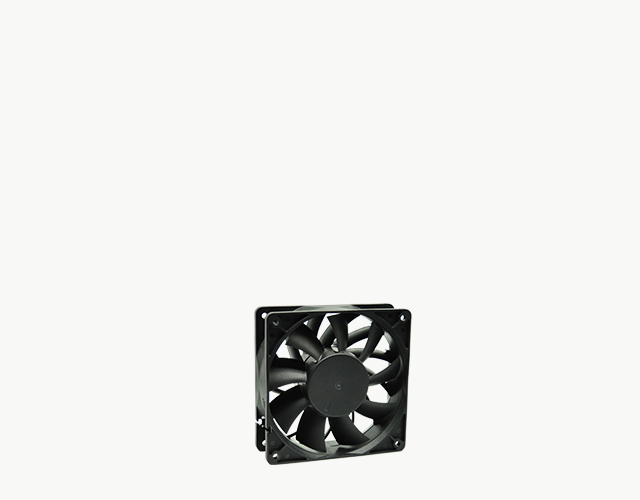

散熱風扇
產品描述
Product Description
SIZE:120x120x38mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;Sleeve bearing -10℃ to +60℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing

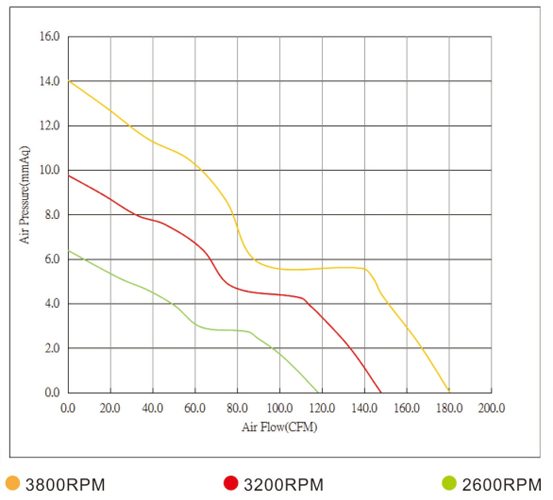

特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YDH1238X12J | S or B | 12 | 1.60 | 3800 | 180.36 | 14.03 | 56.40 | 280 |
| YDM1238X12J | S or B | 12 | 0.98 | 3200 | 148.35 | 9.83 | 51.90 | 280 |
| YDL1238X12J | S or B | 12 | 0.48 | 2600 | 118.16 | 6.39 | 46.90 | 280 |
| YDH1238X24J | S or B | 24 | 0.80 | 3800 | 180.36 | 14.03 | 56.40 | 280 |
| YDM1238X24J | S or B | 24 | 0.50 | 3200 | 148.35 | 9.83 | 51.90 | 280 |
| YDL1238X24J | S or B | 24 | 0.25 | 2600 | 118.16 | 6.39 | 46.90 | 280 |
| YDH1238X48J | S or B | 48 | 0.40 | 3800 | 180.36 | 14.03 | 56.40 | 280 |
| YDM1238X48J | S or B | 48 | 0.25 | 3200 | 148.35 | 9.83 | 51.90 | 280 |
| YDL1238X48J | S or B | 48 | 0.13 | 2600 | 118.16 | 6.39 | 46.90 | 280 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
