玻璃纖維增強塑料;框葉PBT UL 94V-0等級

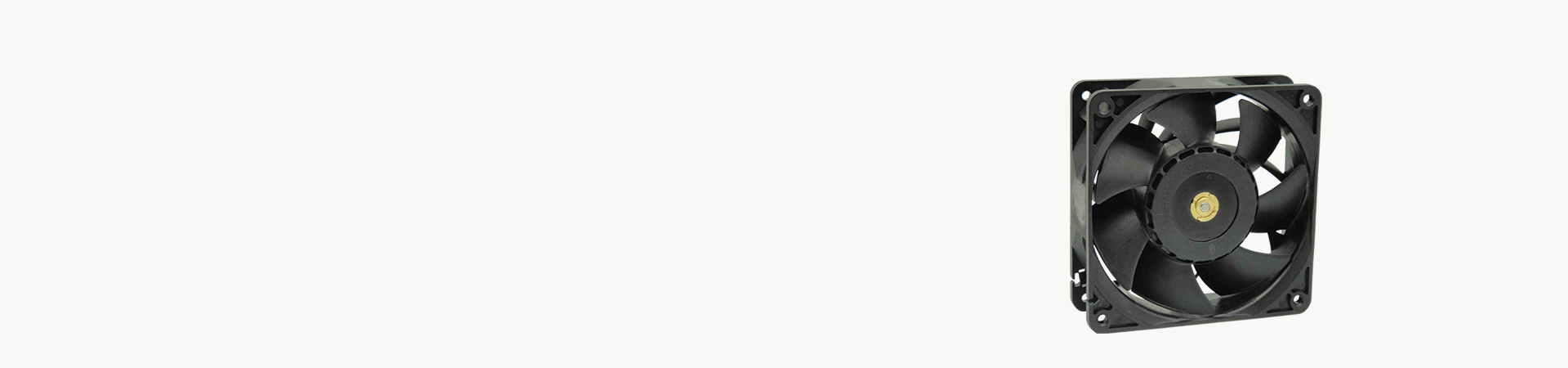

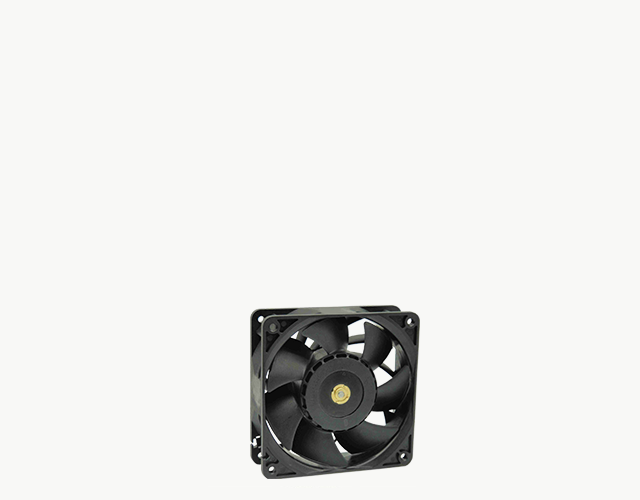

散熱風扇
產品描述
Product Description
SIZE:120x120x38mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;Sleeve bearing -10℃ to +60℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing

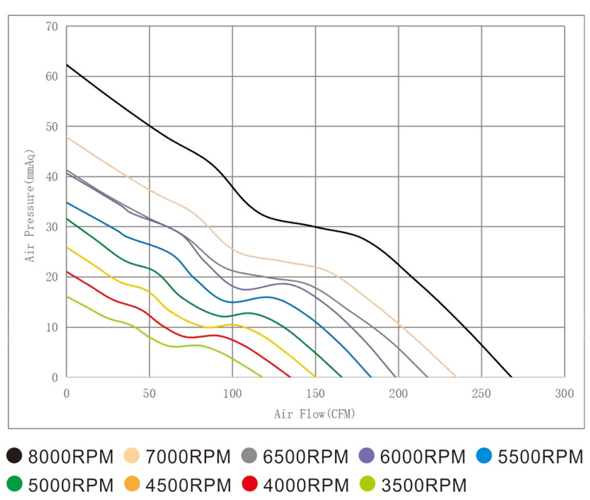

特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YDD1238B12F | B | 12 | 3.60 | 6500 | 217.59 | 41.33 | 64.60 | 332 |
| YDH1238B12F | B | 12 | 1.72 | 5500 | 183.50 | 34.85 | 60.00 | 332 |
| YDM1238B12F | B | 12 | 1.12 | 4500 | 150.25 | 25.93 | 55.00 | 332 |
| YDL1238B12F | B | 12 | 0.72 | 3500 | 118.02 | 16.12 | 49.50 | 332 |
| YDU1238B24F | B | 24 | 2.63 | 8000 | 268.15 | 62.30 | 69.10 | 332 |
| YDD1238B24F | B | 24 | 1.67 | 7000 | 235.10 | 47.89 | 66.20 | 332 |
| YDH1238B24F | B | 24 | 1.12 | 6000 | 198.34 | 40.71 | 61.90 | 332 |
| YDM1238B24F | B | 24 | 0.69 | 5000 | 165.91 | 31.61 | 57.30 | 332 |
| YDL1238B24F | B | 24 | 0.45 | 4000 | 134.88 | 21.05 | 52.40 | 332 |
| YDU1238B48F | B | 48 | 1.22 | 8000 | 268.15 | 62.30 | 69.10 | 332 |
| YDD1238B48F | B | 48 | 0.95 | 7000 | 235.10 | 47.89 | 66.20 | 332 |
| YDH1238B48F | B | 48 | 0.60 | 6000 | 198.34 | 40.71 | 61.90 | 332 |
| YDM1238B48F | B | 48 | 0.35 | 5000 | 165.91 | 31.61 | 57.30 | 332 |
| YDL1238B48F | B | 48 | 0.25 | 4000 | 134.88 | 21.05 | 52.40 | 332 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
