玻璃纖維增強塑料;框葉PBT UL 94V-0等級
散熱風扇

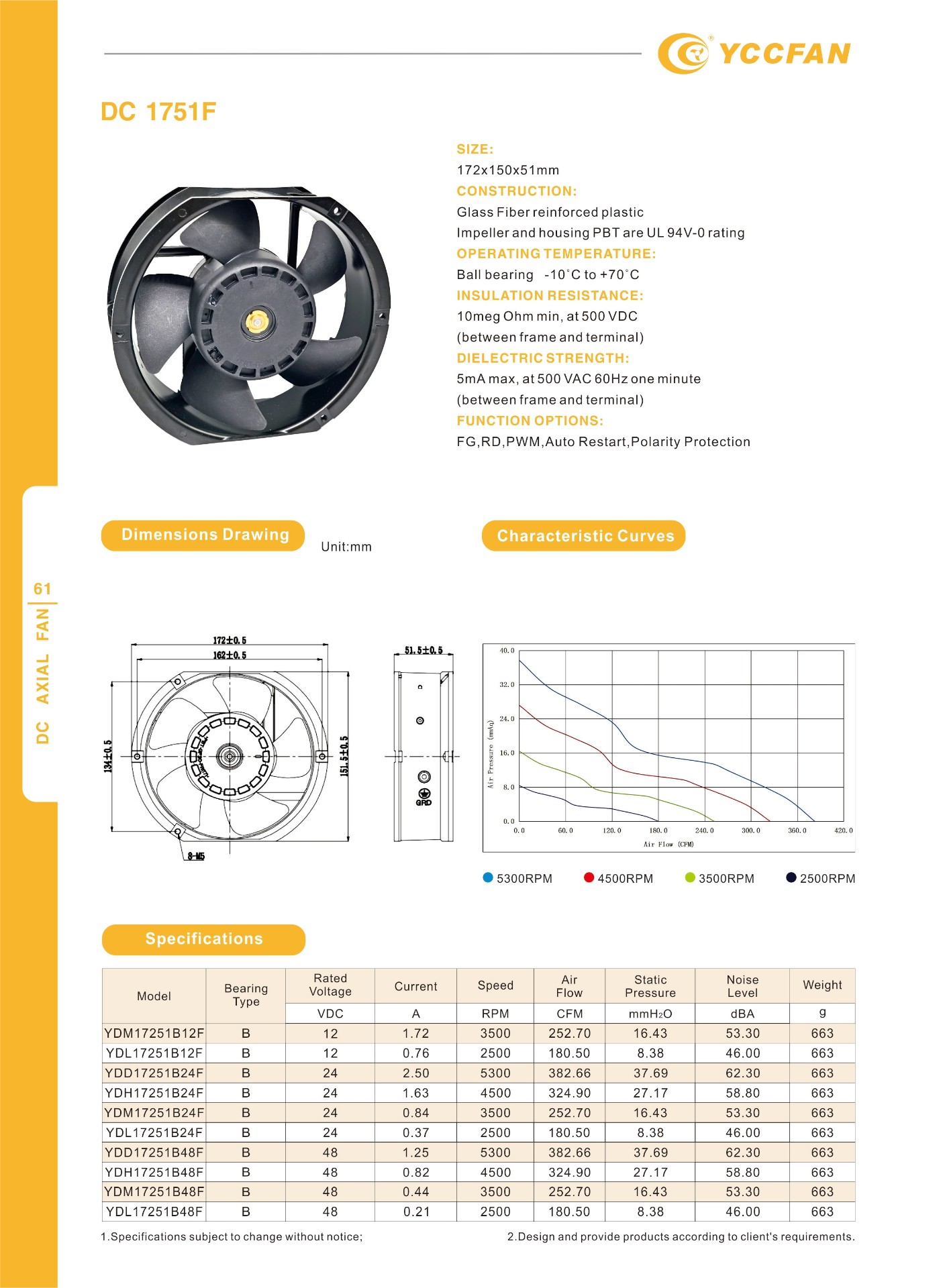

產品描述
Product Description
SIZE:172x150x51mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing

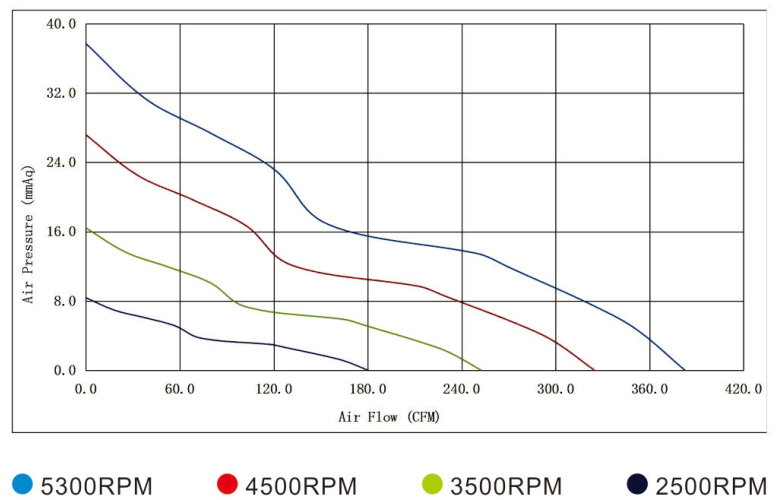

特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YDM17251B12F | B | 12 | 1.72 | 3500 | 252.70 | 16.43 | 53.30 | 663 |
| YDL17251B12F | B | 12 | 0.76 | 2500 | 180.50 | 8.38 | 46.00 | 663 |
| YDD17251B24F | B | 24 | 2.50 | 5300 | 382.66 | 37.69 | 62.30 | 663 |
| YDH17251B24F | B | 24 | 1.63 | 4500 | 324.90 | 27.17 | 58.80 | 663 |
| YDM17251B24F | B | 24 | 0.84 | 3500 | 252.70 | 16.43 | 53.30 | 663 |
| YDL17251B24F | B | 24 | 0.37 | 2500 | 180.50 | 8.38 | 46.00 | 663 |
| YDD17251B48F | B | 48 | 1.25 | 5300 | 382.66 | 37.69 | 62.30 | 663 |
| YDH17251B48F | B | 48 | 0.82 | 4500 | 324.90 | 27.17 | 58.80 | 663 |
| YDM17251B48F | B | 48 | 0.44 | 3500 | 252.70 | 16.43 | 53.30 | 663 |
| YDL17251B48F | B | 48 | 0.21 | 2500 | 180.50 | 8.38 | 46.00 | 663 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
