玻璃纖維增強塑料;框葉PBT UL 94V-0等級
散熱風扇
產品描述
Product Description
SIZE:200x51mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection

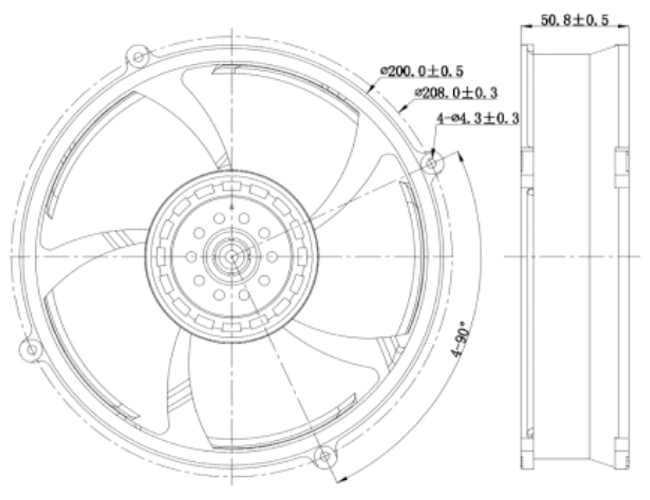

尺寸圖
Dimensions Drawing

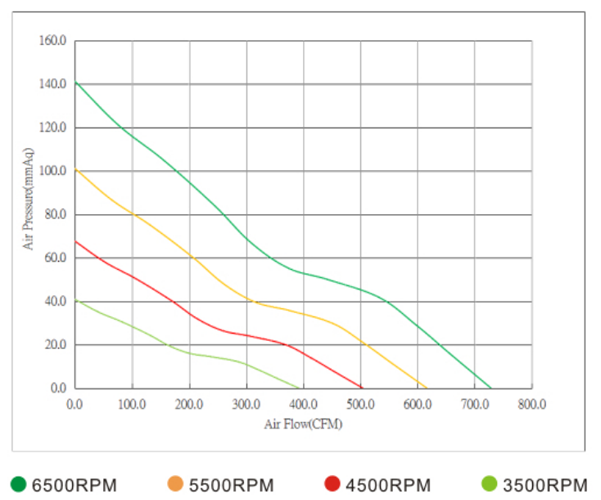

特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YDD2051B48F | B | 48 | 4.38 | 6500 | 728.40 | 141.37 | 68.59 | 1100 |
| YDH2051B48F | B | 48 | 2.69 | 5500 | 616.34 | 101.22 | 64.97 | 1100 |
| YDM2051B48F | B | 48 | 1.44 | 4500 | 504.28 | 67.76 | 60.61 | 1100 |
| YDL2051B48F | B | 48 | 0.69 | 3500 | 392.22 | 40.99 | 55.15 | 1100 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
