材料:玻璃纖維增強塑科；框葉PBT UL94V-0等級

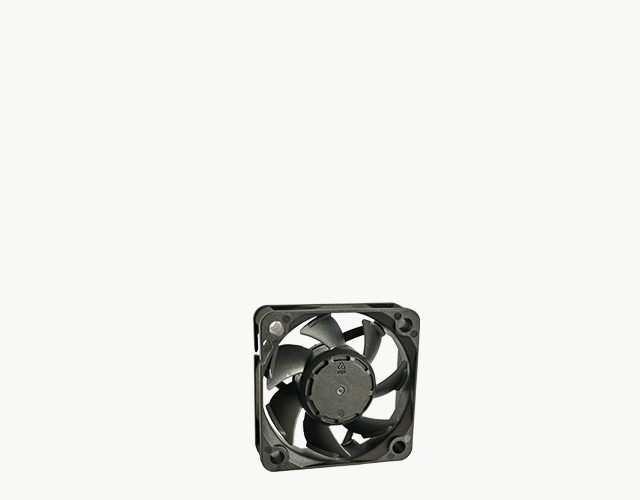

散熱風扇
產品描述
Product Description
SIZE:50x50x15mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;CycleSeal bearing -10℃ to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing

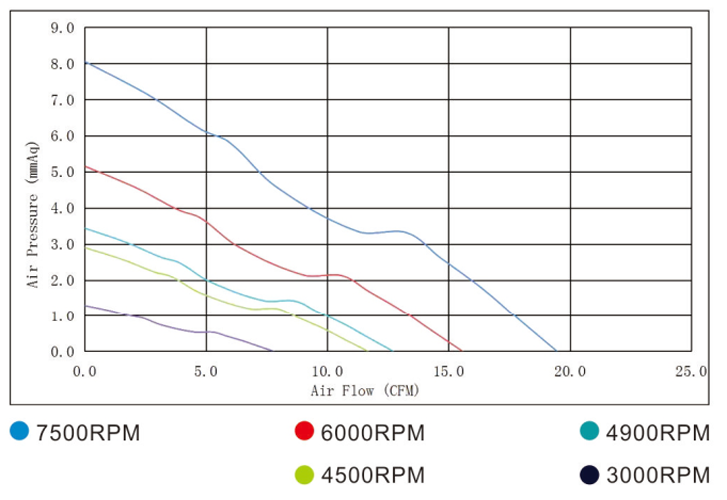

特徵曲線(xiàn )
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | dBA | ||
| YDH5015X05F | C or B | 5 | 0.20 | 6000 | 15.57 | 5.15 | 37.40 | 30 |
| YDM5015X05F | C or B | 5 | 0.15 | 4500 | 11.67 | 2.90 | 31.20 | 30 |
| YDL5015X05F | C or B | 5 | 0.05 | 3000 | 7.78 | 1.28 | 22.40 | 30 |
| YDD5015X12F | C or B | 12 | 0.16 | 7500 | 19.46 | 8.05 | 42.30 | 30 |
| YDH5015X12F | C or B | 12 | 0.09 | 6000 | 15.57 | 5.15 | 37.40 | 30 |
| YDM5015X12F | C or B | 12 | 0.06 | 4500 | 11.67 | 2.90 | 31.20 | 30 |
| YDL5015X12F | C or B | 12 | 0.04 | 3000 | 7.78 | 1.28 | 22.40 | 30 |
| YDH5015X24F | C or B | 24 | 0.09 | 7500 | 19.46 | 8.05 | 42.30 | 30 |
| YDM5015X24F | C or B | 24 | 0.06 | 6000 | 15.57 | 5.15 | 37.40 | 30 |
| YDL5015X24F | C or B | 24 | 0.03 | 4900 | 12.71 | 3.43 | 33.06 | 30 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
